Standard TFT LCD Display Module

Standard TFT LCD Display Module



LCD (liquid crystal display) screens come in various sizes and resolutions. Resolution is defined as the number of pixels or small dots that make up an LCD screen. ... Each of these pixels turns on and off and filters light through colored sub-pixels which results in an image.


Exson is ISO 900, UL certified factory, with reliable supply chain, has a range of off-the-shelf solutions available, stable supply 300-500k/month. With transparent sales and offer, guaranty lowest competitive price in the market. All the products are long last design with strict quality control, ensure 3 years defective rate below 0.3%.



The available sizes now vary from 1.44" 2.44", 3.5" to 43"  standard  TFT LCD modules,we also offer HB or WG to suit your needs, resolution including (128*128 ) (240*240) (240*320) (320*480) (800*480 ) (1024X600) (1200x1920 )etc. View our quality products below and feel free to Contact Us.


Types of Standard TFT LCD Display Module

Product Size Resolution Picture Part Number Structure Drive_IC Interface Brightness Viewing (Grayscale) OD Size (W*H*T) AA_Size (mm) Op. Temp St. Temp
0.96 Inch 80x160 13PIN SPI4 IPS 110nits TFT LCD Display Module 0.96 Inch 80*160 0.96 Inch 80x160 13PIN SPI4 IPS 110nits TFT LCD Display Module EX00901 TFT ST7735S SPI_4W 200nits ALL 14.04×27.95×1.35 10.8*21.7 -20~70°C -30~80°C
1.3 Inch 240x240 13PIN SPI4 IPS 160nits TFT LCD Display Module 1.3 Inch 240*240 1.3 Inch 240x240 13PIN SPI4 IPS 160nits TFT LCD Display Module EX01301 TFT ST7789V SPI_4W 200nits ALL 33.00*33.00*2.3 23.4*23.4 -20~70°C -30~80°C

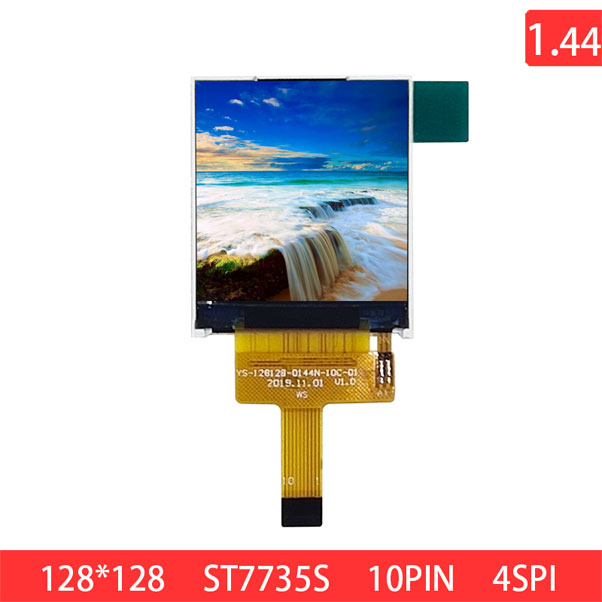

1.44 Inch 128x128 SQQVGA 10PIN SPI4 TN 250nits TFT LCD Display Module 1.44 Inch 128*128 1.44 Inch 128x128 SQQVGA 10PIN SPI4 TN 250nits TFT LCD Display Module EX01401 TFT ST7735S SPI_4W 200nits 12:00 29.00*34.41*2.22 25.5*26.5 -20~70°C -30~80°C
1.54 Inch 320x320 SQVGA 24PIN SPI4 IPS 300nits TFT LCD Display Module 1.54 Inch 320*320 1.54 Inch 320x320 SQVGA 24PIN SPI4 IPS 300nits TFT LCD Display Module EX01501 TFT ST7796S SPI_4W 300nits ALL 31.52*33.72*1.45 27.74*27.74 -20~70°C -30~80°C

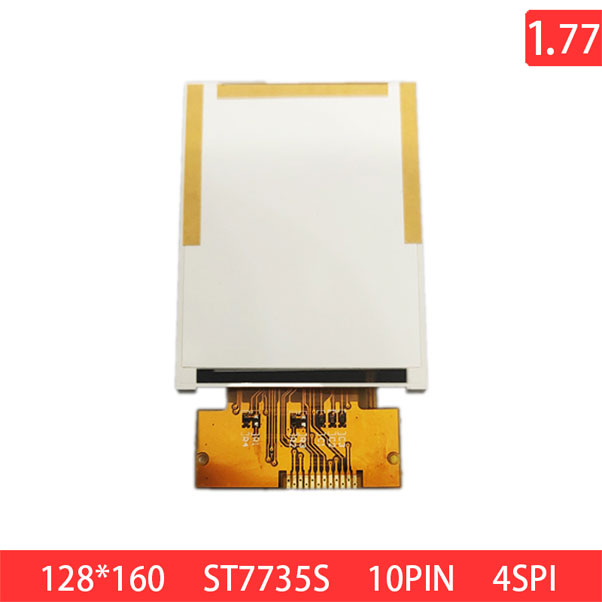

1.77 Inch 128x160 QQVGA 12PIN TN 300nits TFT LCD Display Module 1.77 Inch 128*160 1.77 Inch 128x160 QQVGA 12PIN TN 300nits TFT LCD Display Module EX01701 TFT ST7735S SPI_4W 200nits 12:00 34.0*45.83*2.4 28.03*35.04 -20~70°C -30~80°C
2.0 Inch 240X320 QVGA 22PIN MCU IPS 450nits TFT LCD Display Module 2.0 Inch 320*240 2.0 Inch 240X320 QVGA 22PIN MCU IPS 450nits TFT LCD Display Module EX02001 TFT ST7789V MCU_8BIT 450nits ALL 36.2*51.8*2.35 30.66*40.8 -20~70°C -30~80°C
2.0 Inch 480x360 HVGA 24PIN MIPI IPS 250nits TFT LCD Display Module 2.0 Inch 480*360 2.0 Inch 480x360 HVGA 24PIN MIPI IPS 250nits TFT LCD Display Module EX02002 TFT ST7701S MIPI 250nits ALL 49.1*45.96*2.53 30.66*40.8 -20~70°C -30~80°C
2.0 Inch 240x320 QVGA 50PIN RGB IPS 300nits TFT LCD Display Module 2.0 Inch 320*240 2.0 Inch 240x320 QVGA 50PIN RGB IPS 300nits TFT LCD Display Module EX02001-A01 TFT ST7789V MCU_8BIT 450nits ALL 36.2*51.8*2.35 30.66*40.8 -20~70°C -30~80°C
2.3 Inch 320x240 QVGA 40PIN MUC TN 300nits TFT LCD Display Module 2.3 Inch 320*240 2.3 Inch 320x240 QVGA 40PIN MUC TN 300nits TFT LCD Display Module EX02301 TFT ILI9342C MCU_16BIT 250nits 12:00 51.0*45.8*2.35 46.75*35.06 -20~70°C -30~80°C
2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits TFT LCD Display Module 2.4 Inch 240*320 2.4 Inch 240x320 QVGA 14PIN SPI4 IPS 250nits TFT LCD Display Module EX02401 TFT ST7789V SPI_4W 250nits ALL 42.00*59.00*2.24 36.72*48.96 -20~70°C -30~80°C

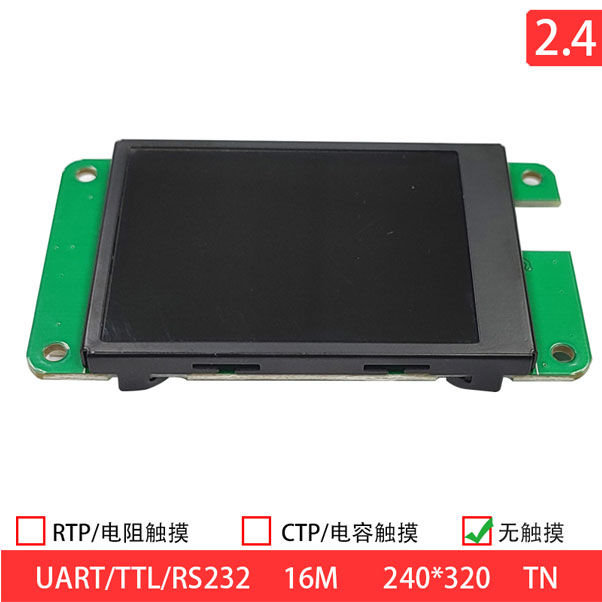

2.4 Inch 240x320 QVGA 6PIN UART TN 220nits TFT LCD Display Module 2.4 Inch 240*320 2.4 Inch 240x320 QVGA 6PIN UART TN 220nits TFT LCD Display Module EX02402 TFT ST7789V UART RS232/TTL 220nits 12:00 44.02*78.11*7.56 36.72*48.96 -20~70°C -30~80°C
2.47 Inch 480x480 Round 35PIN MIPI 400nits TFT LCD Display Module 2.47”Round 480*480 2.47 Inch 480x480 Round 35PIN MIPI 400nits TFT LCD Display Module EX02403 TFT HX8370-C MIPI 400nits ALL 69.19*71.74*2.45 62.64*62.64 -20~70°C -30~80°C

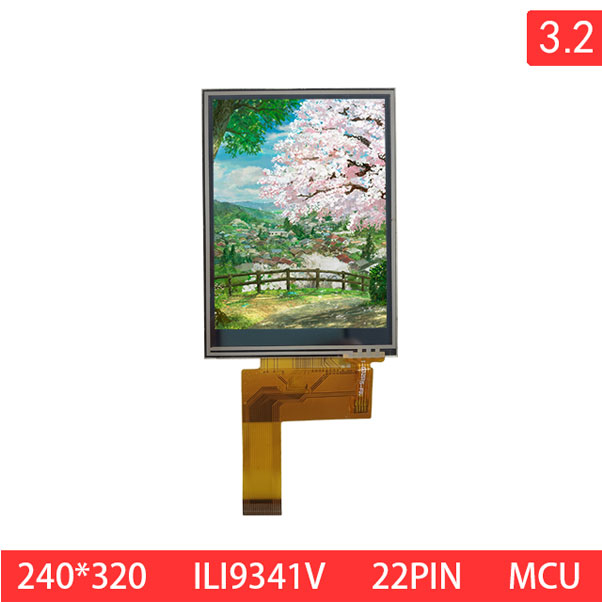

3.2 Inch 240X320 QVGA 22PIN MCU IPS 300nits TFT LCD Display Module 3.2 Inch 240*320 3.2 Inch 240X320 QVGA 22PIN MCU IPS 300nits TFT LCD Display Module EX03201 TFT ILI9341V MCU_8BIT 300nits ALL 55.04×77.5×2.5 48.6×64.7 -20~70°C -30~80°C

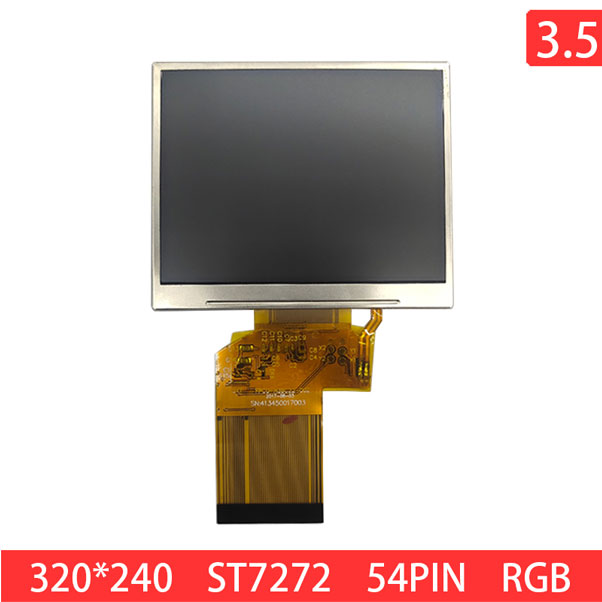

3.5 Inch 320X240 QVGA 54PIN RGB TN 300nits TFT LCD Display Module 3.5 Inch 320*240 3.5 Inch 320X240 QVGA 54PIN RGB TN 300nits TFT LCD Display Module EX03501 TFT HX8238D TTL 360nits 12:00 76.84*63.84*3.22 70.08*52.56 -10~60°C -20~70°C
3.5 Inch 320x480 HVGA 50PIN RGB TN 350nits TFT LCD Display Module 3.5 Inch 320*480 3.5 Inch 320x480 HVGA 50PIN RGB TN 350nits TFT LCD Display Module EX03502 TFT ILI9488C RGB/MCU 350nits 12:00 54.48*83.00*2.2 48.96*73.44 -20~70°C -30~80°C

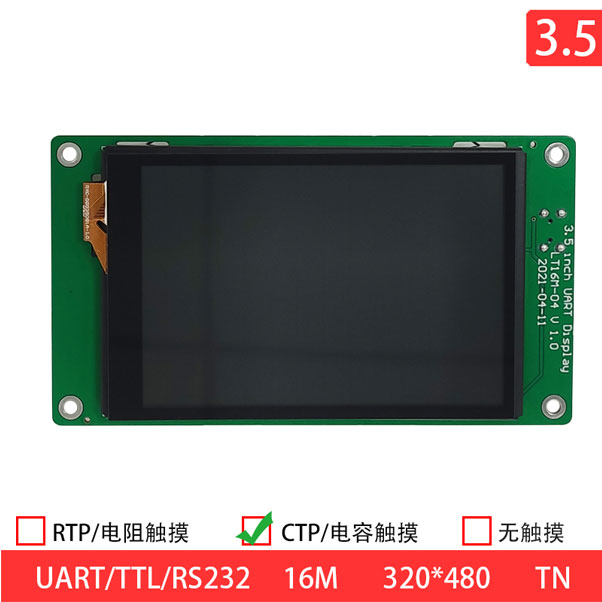

3.5 Inch 320x480 HVGA 6PIN UART TN 220nits TFT LCD Display Module 3.5 Inch 480*320 3.5 Inch 320x480 HVGA 6PIN UART TN 220nits TFT LCD Display Module EX03505 TFT ST7796S UART RS232/TTL 220nits 3:00 108.71*60.71*8.8 73.44*48.96 -20~70°C -30~80°C
3.5 Inch 640x480 VGA 54PIN RGB IPS 400nits TFT LCD Display Module 3.5 Inch 640*480 3.5 Inch 640x480 VGA 54PIN RGB IPS 400nits TFT LCD Display Module EX03510 TFT TBD RGB 400nits ALL 76.84*63.84*3.22 70.08*52.56 -20~70°C -30~80°C
3.97 Inch 480X800 WVGA 39PIN MIPI IPS 400nits TFT LCD Display Module 3.97 Inch 480*800 3.97 Inch 480X800 WVGA 39PIN MIPI IPS 400nits TFT LCD Display Module EX04008-A01+CT01 TFT ST7701S SPI+RGB 400nits ALL 57.14*97.3*3.48 51.84*86.4 -20~70°C -30~80°C

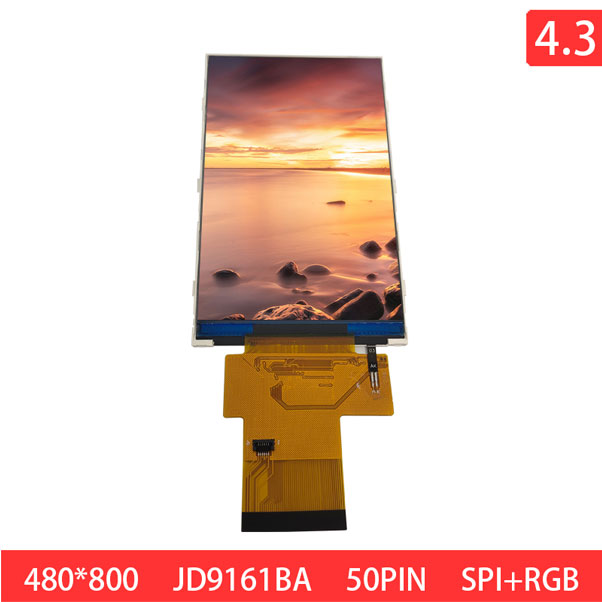

4.3 Inch 480X800 WVGA 50PIN RGB IPS 300nits TFT LCD Display Module 4.3 Inch 480*800 4.3 Inch 480X800 WVGA 50PIN RGB IPS 300nits TFT LCD Display Module EX04301 TFT JD9161BA RGB 24Bit 400nits ALL 62.86*105.75*2.0 56.16*93.60 -20~70°C -30~80°C
4.3 Inch 480x272 HVGA 6PIN UART TN 220nits TFT LCD Display Module 4.3 Inch 480*272 4.3 Inch 480x272 HVGA 6PIN UART TN 220nits TFT LCD Display Module EX04302 TFT ST7282 UART RS232/TTL 220nits 6:00 130.1*69.8*9.1 95.04*53.86 -20~70°C -30~80°C
4.3 Inch 480x272 HVGA 44PIN TTL IPS 360nits TFT LCD Display Module 4.3 Inch 480*272 4.3 Inch 480x272 HVGA 44PIN TTL IPS 360nits TFT LCD Display Module EX04327 4.3'' SC7283 TTL 360nits ALL 105.5*67.2*4.8 95.04*53.86 -20~70°C -30~70°C
5.0 Inch 800x480 WVGA 40PIN TTLTN 350nits TFT LCD Display Module 5.0 Inch 800*480 5.0 Inch 800x480 WVGA 40PIN TTLTN 350nits TFT LCD Display Module EX05002 TFT ST7262 UART RS232/TTL 250nits 6:00 150.00*81.85*10.45 108.0*64.8 -20~70°C -30~80°C
5.0 Inch 800x480 WVGA 6PIN UART TN 250nits TFT LCD Display Module 5.0 Inch 800×480 5.0 Inch 800x480 WVGA 6PIN UART TN 250nits TFT LCD Display Module EX05003 UART TN ST7262 UART TFT LCD 250nits 6:00 81.85*150*9.2 64.8*108 -20~70℃ -30~80℃
5.5 Inch 800x1280 HD 25PIN MIPI IPS 400nits TFT LCD Display Module 5.5 Inch 720*1280 5.5 Inch 800x1280 HD 25PIN MIPI IPS 400nits TFT LCD Display Module EX05508-A01 TFT ILI9488C MIPI 400nits ALL 70.94*129.56*1.53 68.04 *120.96 -20~70°C -30~80°C
5.5 Inch 800x1280 HD HDMI+USB IPS 400nits TFT LCD Display Module 5.5 Inch 720*1280 5.5 Inch 800x1280 HD HDMI+USB IPS 400nits TFT LCD Display Module EX05504-A02 TFT ILI9488C+LT8918L LVDS 400nits ALL 70.94*129.56*1.53 68.04 *120.96 -20~70°C -30~80°C
7.0 Inch 800x480 WVGA 50PIN TTL TN 350nits TFT LCD Display Module 7.0 Inch 800*480 7.0 Inch 800x480 WVGA 50PIN TTL TN 350nits TFT LCD Display Module EX07015 TFT EK9713CA & EK73002ACGB TTL 50PIN 400nits 6:00 165.00*100.00*3.5 154.08 * 85.92 -10~50°C -20~60°C

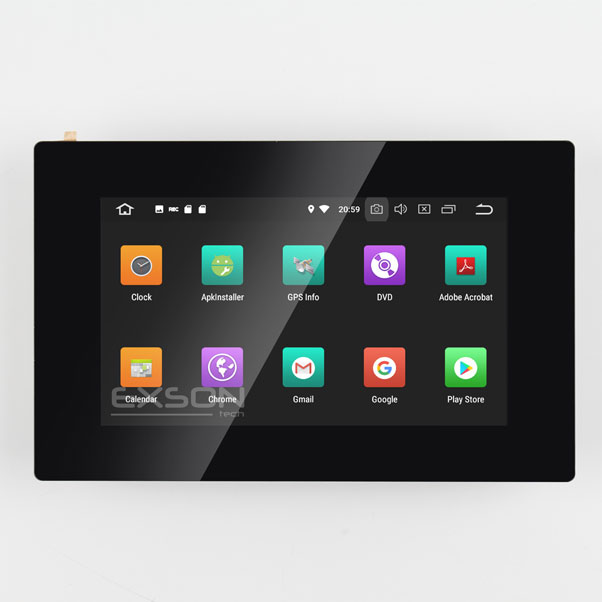

7.0 Inch 1024x600 WSVGA 40PIN HDMI+USB IPS 450nits TFT LCD Display Module 7.0 Inch 1024*600 7.0 Inch 1024x600 WSVGA 40PIN HDMI+USB IPS 450nits TFT LCD Display Module EX07017 TFT HDMI+USB 450nits ALL 164.9*100*3.5 154.21 * 85.92 -10~50°C -20~60°C

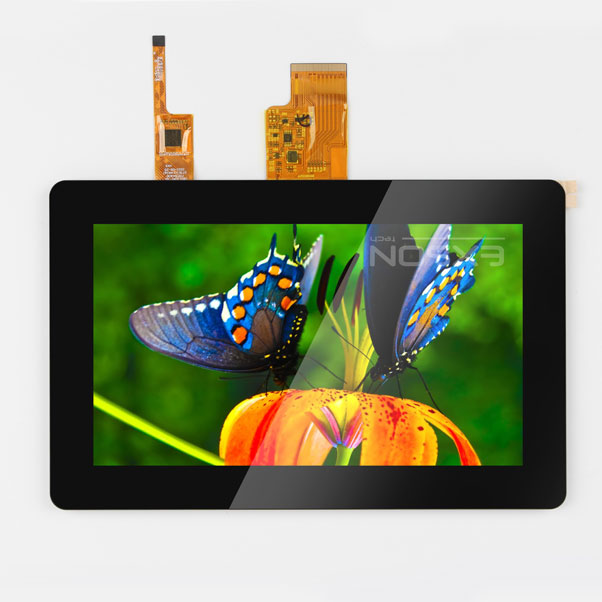

7.0 Inch 1024x600 WSVGA 40PIN LVDS IPS 450nits 1 TFT LCD Display Module 7.0 Inch 1024*600 7.0 Inch 1024x600 WSVGA 40PIN LVDS IPS 450nits 1 TFT LCD Display Module EX07018 TFT HX8282-A11& HX8696-A00 LVDS 450nits ALL 185.78 × 117.57 × 5.35 154.21 * 85.92 -10~50°C -20~60°C
7.0 Inch 800x480 WVGA 40PIN TTL TN 450nits TFT LCD Display Module 7.0 Inch 800*480 7.0 Inch 800x480 WVGA 40PIN TTL TN 450nits TFT LCD Display Module EX07045 TFT EK9713CA & EK73002ACGB TTL 40PIN 450nits 6:00 165.00*100.00*5.4 154.08 * 85.92 -10~50°C -20~60°C
7.0 Inch 1024x600 WSVGA 40PIN LVDS IPS 450nits 2 TFT LCD Display Module 7.0 Inch 1024*600 7.0 Inch 1024x600 WSVGA 40PIN LVDS IPS 450nits 2 TFT LCD Display Module EX07018-A01+CT01 TFT HX8282-A11& HX8696-A00 LVDS 450nits ALL 185.78*117.57*5.35 154.21 * 85.92 -10~50°C -20~60°C
10.1 Inch 1024x600 WSVGA 50PIN TTL TN 300nits TFT LCD Display Module 10.1 Inch 1024*600 10.1 Inch 1024x600 WSVGA 50PIN TTL TN 300nits TFT LCD Display Module EX10121 TFT EK79001&EK73215 TTL 300nits 6:00 235.0*143.0*5.1 222.72*125.28 -10~60°C -20~65°C
23.6 Inch 1920x1080 FHD 30PIN LVDS-Double IPS 600nits TFT LCD Display Module 23.6 Inch 1920*1080 23.6 Inch 1920x1080 FHD 30PIN LVDS-Double IPS 600nits TFT LCD Display Module EX23601 TFT TBD LVDS*2 600nits ALL 544.80*320.50*9.45 521.28*293.22 -10~60°C -20~70°C
40.0 Inch 1920x1080 FHD 50PIN LVDS-Double MVA 750nits TFT LCD Display Module 40 Inch 1920*1080 40.0 Inch 1920x1080 FHD 50PIN LVDS-Double MVA 750nits TFT LCD Display Module EX40006 TFT TBD LVDS*4 700nits aLL 895.9*511.7*20.0 878.112 x 485.352 0~40°C -20~60°C

What is LCD standard?

LCD (liquid crystal display) screens come in various sizes and resolutions. Resolution is defined as the number of pixels or small dots that make up an LCD screen. ... Each of these pixels turns on and off and filters light through colored sub-pixels which results in an image.


Exson can provide various sizes from 1.44" 2.44", 3.5" to 43" standard TFT LCD modules, we also offer HB or WG to suit your needs, resolution including (128*128 ) (240*240) (240*320) (320*480) (800*480 ) (1024X600) (1200x1920 )etc. View our quality products below and feel free to Contact Us.


What is an IPS-TFT display?

IPS-TFT display is a super TFT, which use the latest TFT technology. It bases on active matrix TFT but overcome the viewing limitations,providing enhanced color, better contrast images. It’s the essence of the TFT screen,.

Exson Available Standard LCD Display

  • Size: 1.44″, 3.5″, 4.3″, 5.0″, 5.5″, 7.0″, 8.0″, 9.0″, 10.1″, 11.6″, 21.5″, 23.6″etc.

  • Resolution: 128*128, 240*240, 240*320, 320*480, 800*480, 1024*600, 1200*1920

  • Interface: SPI RGB MCU LVDS Mipi eDP


What are the benefits of an IPS-TFT display?

  • IPS-TFT displays higher contrast compare with standard ones,as the background is true black when the pixel in off state.

  • With wider viewing angle, IPS can exhibits clearly in 85 degree, while normal TFTs only allow 65 degree.

THANK YOU FOR YOUR ATTENTION ON EXSON!
Contact us to get more information about Exson’s TFT LCD Display Modules.
*
*
*
