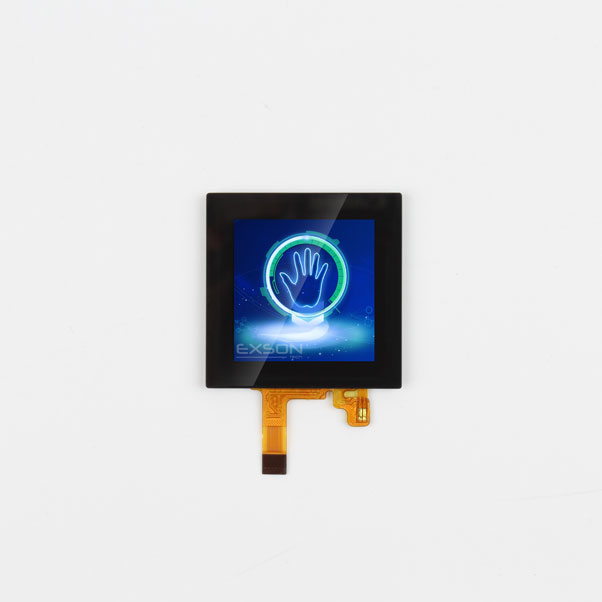

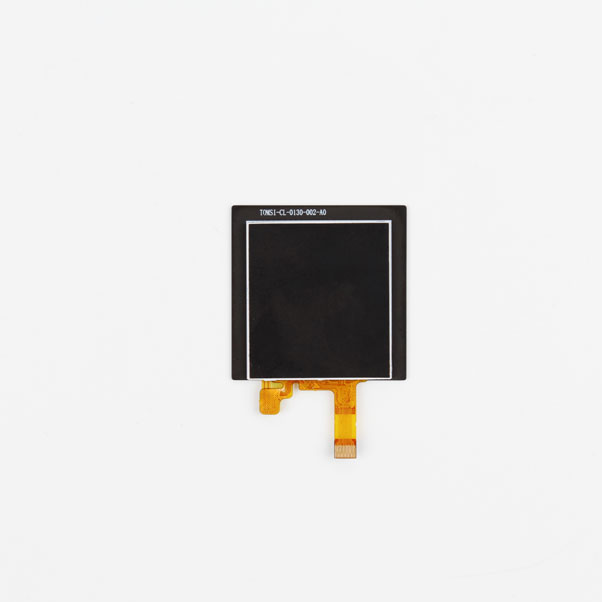

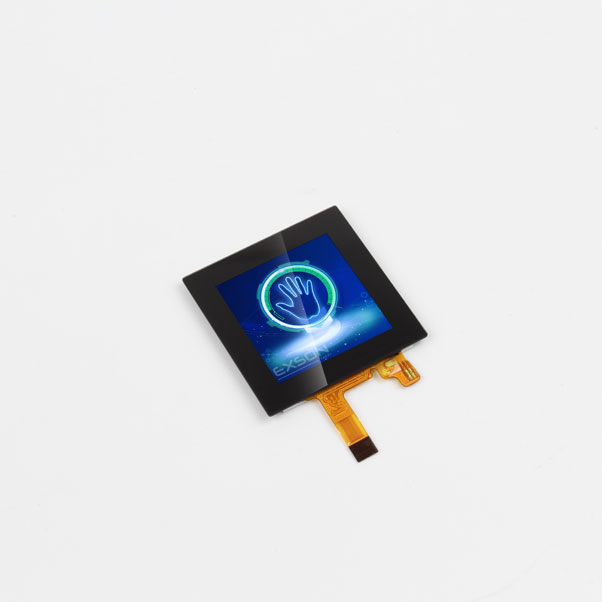

This single-display module is suitable for use in MB products .The LCD adopts one backlight with High brightness 2-lamps white LED. Construction: 1.3〞a-Si color TFT-LCD ,White LED backlight, FPC .This liquid crystal display module is suitable for use in smart wear, smart watches, household appliances, toys, medical treatment, etc.
No. | Item | Specification |
1 | LCD size | 1.3inch |
2 | Resolution | 240 (RGB)X240 |
3 | Display mode | Normally Black |
4 | Pixel pitch | 975(H)×975(V)mm |
5 | Active area | 23.4(H)×23.4(V)mm |
6 | Module size | 33.00(H)*33.00(V)*2.30(T)mm |
7 | Pixel arrangement | RGB-stripe |
8 | Interface | 4-line Serial interface |
9 | Viewing angle | 80/80/80/80 |
10 | Contrast ratio | 800:1 |
11 | Luminance | 300cd/m² |
