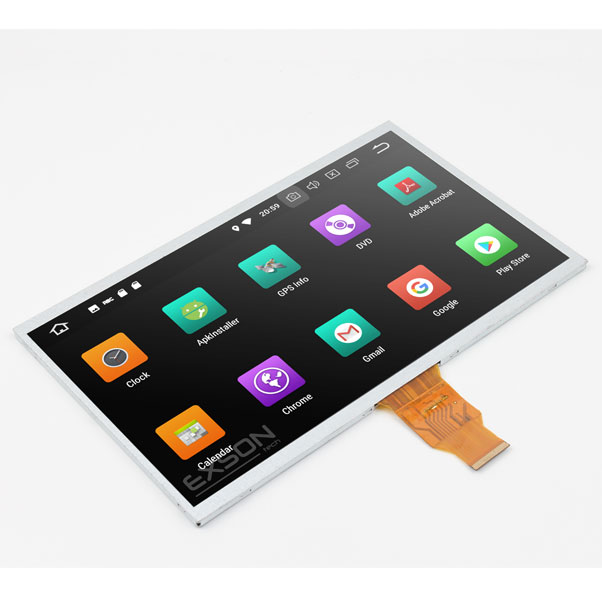

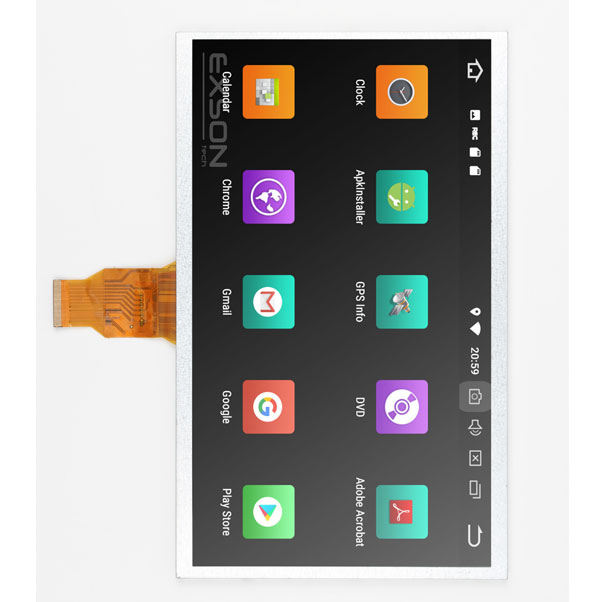

10.1 Inch 1024x600 WSVGA 50PIN TTL TN 300nits TFT LCD Display Module

Name: 10.1 Inch 1024x600 WSVGA 50PIN TTL TN 300nits TFT LCD Display Module
Brand: Shenzhen EXSON Technology CO., LTD.

This single-display module is suitable for use in Automobile products.

The LCD adopts one backlight with 33 High brightness white LEDs.

Construction: 10.1〞а-Si color TFT-LCD ,White LED backlight.

General Specifications of 10.1 Inch 1024x600 WSVGA 50PIN TTL TN 300nits

No.	Item	Specification
1	LCD size	10.1inch
2	Resolution	1024 x3(RGB)X600
3	Display mode	Normally White, Transmissive
4	Pixel pitch	0.2175(W)X0.2088(H) mm
5	Active area	222.72 (W)X125.28(H) mm

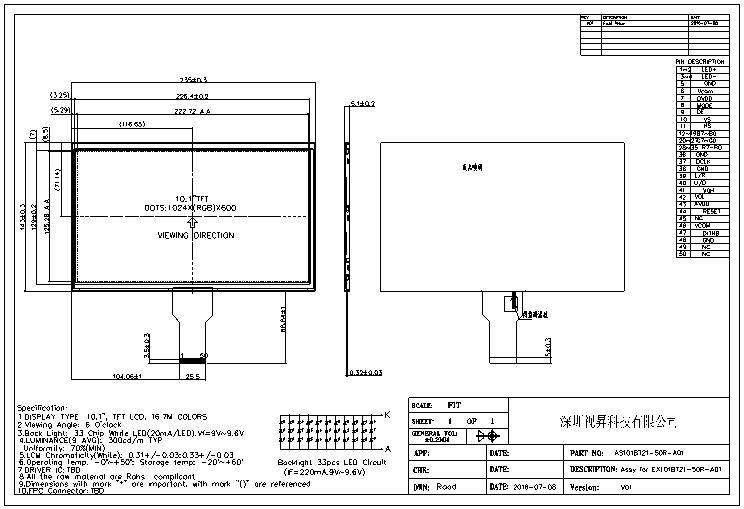

6	Module size	235.00 (W)X143.00(H)X5.1(D) mm
7	Pixel arrangement	RGB-vertical stripe
8	Interface	RGB
9	Surface treatment	Anti-Glare
10	Color arrangement	RGB-stripe
11	View direction(Gray Inversion)	6 O’clock
