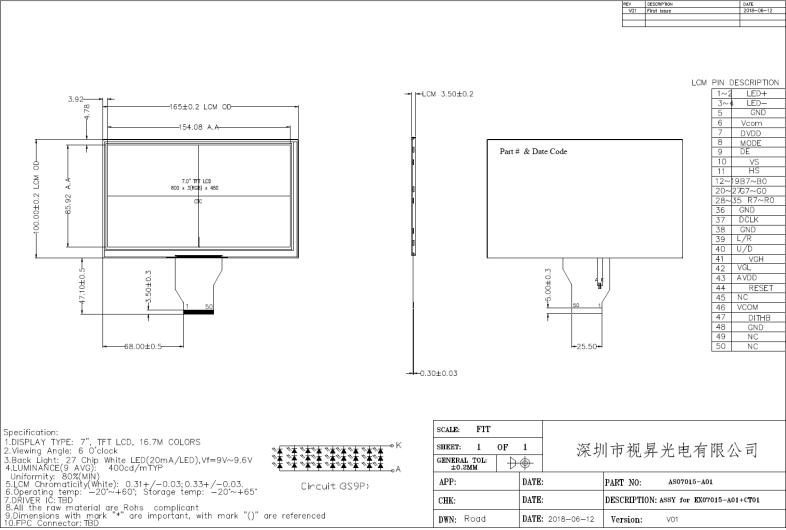

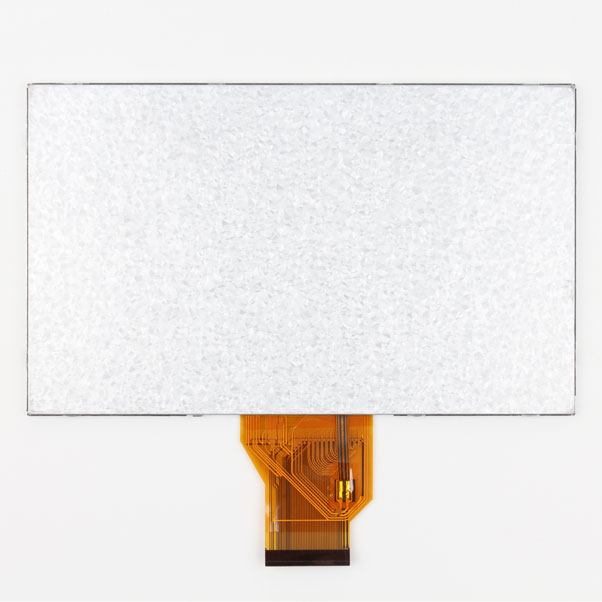

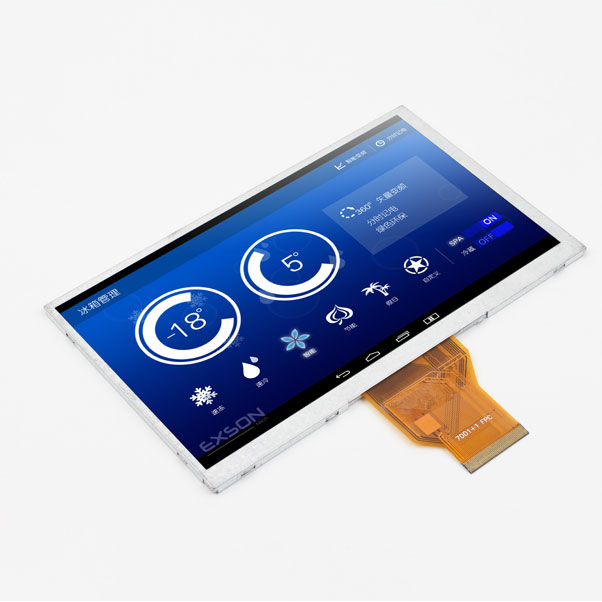

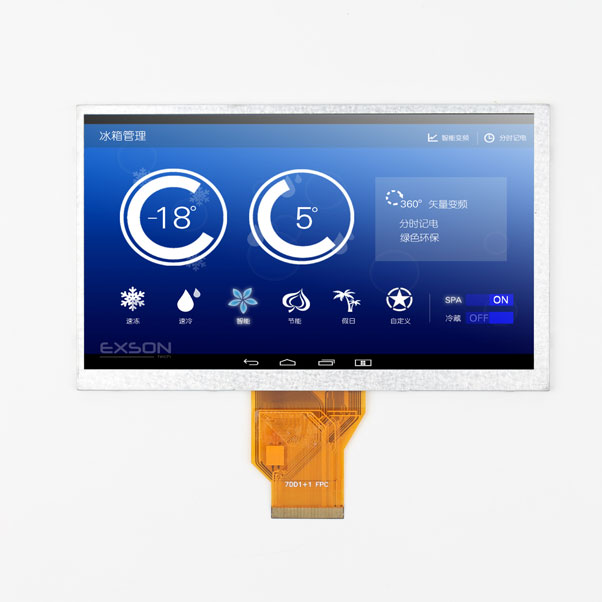

This single-display module is suitable for use in Automobile products.EX07015-A01 is a 7.0 inch, TTL TN TFT LCD module . The module dimension is 165.00(W)×100.00(H); active area 154.08(W)×85.92(H) mm (7.0"diagonal). Its resolution is 800x480 pixels (width 800pixels x height 480 pixels) . This 7.0 inch TTL TFT LCD display module has built-in IC EK9713CA supporting TTL interface. The brightness is 350 cd/m2 . Operating temperature covers from -20~+60℃, storage temperature range is from -20~+65℃.
Item | Specifications |
LCD size | 7.0 inch |
Resolution | 800 x3(RGB)X480 |
Active area | 154.08 (W)X85.92 (H) mm |
Module size | 165.00 (W)X100.00(H)X3.5(D) mm |
| Contrast Ratio | 500:1 |
| Display mode | Normally White |
| Interface | RGB |
| Brightness | 350cd/m2 |
| Pixel arrangement | RGB-vertical stripe |
| Driver IC | EK9713CA & EK73002ACGB |
| Viewing angle | 6 o'clock |
| Polarizer | Transmissive |
