Sunlight Readable TFT LCD Display Module

Sunlight Readable TFT LCD Display Module



Sunlight readable HD screen is a high brightness LCD display modules, it enables users to see high-resolution, full-color graphics even with bright industrial lights or sunlight directly on the screen. A good sunlight-readable display always with high contrast, Good heat dissipation and less power consumption.


All of our Sunlight readable displays are with industry-grade qualities, for TFT LCD module, We use the best materials, highlight films, high effective lights, adding our decade years of experience and  cutting edge technology,

We can provide our customers with brighter products under the same power consumption condition,  the average product life can reach up to 50000 hours.


Exson developed size including 2.4", 3.5", 4.3”, 5.0”5.5" 6.0",7" 8 inch lcd screen" 9" to 10.1", 10.4 12.1 13.3 15.6" 21.5" 39.5". If you can't find the desired range in our line, welcome to contact us for data-based solutions, we are sure you would be impressed by our professional and outstanding products.


Types of Sunlight Readable TFT LCD Display Module

Product Size Resolution Picture Part Number Structure Drive_IC Interface Brightness Viewing (Grayscale) OD Size (W*H*T) AA_Size (mm) Op. Temp St. Temp

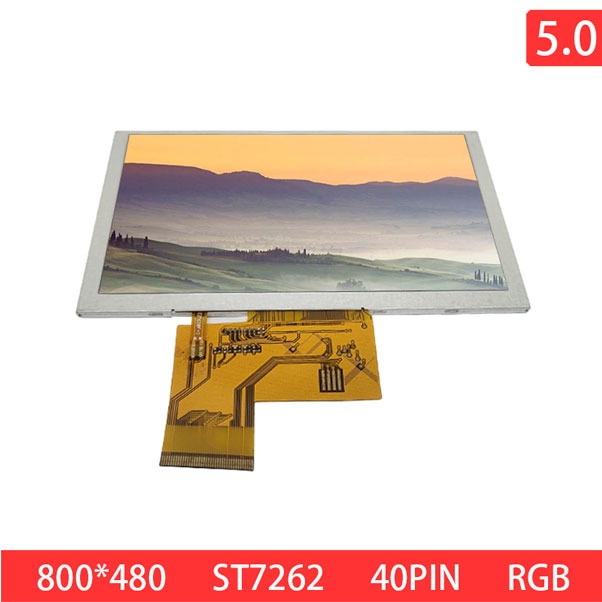

5.0 Inch 800x480 WVGA 40PIN TTL IPS 1000nits TFT LCD Display Module 5.0 Inch 800*480 5.0 Inch 800x480 WVGA 40PIN TTL IPS 1000nits TFT LCD Display Module EX05001 TFT ST7262 TTL 950nits ALL 120.7*75.8*2.83 108.0*64.8 -20~70°C -30~80°C
5.0 Inch 1080x1920 FHD 31PIN MIPI 1600nits TFT LCD Display Module 5.0 Inch 1080*1920 5.0 Inch 1080x1920 FHD 31PIN MIPI 1600nits TFT LCD Display Module EX05014 In-cell FT8716 MIPI 2000nits all 75.88*119.47*4.27 61.88*110.02 -20~70°C -30~80°C
7.0 Inch 1200x1920 WUXGA 40PIN MIPI IPS 650nits TFT LCD Display Module 7.0 Inch 1200*1920 7.0 Inch 1200x1920 WUXGA 40PIN MIPI IPS 650nits TFT LCD Display Module EX07052 TFT R69429 MIPI/4 650nits aLL 108.52*171.7*3.15 94.5*151.2 -10~60°C -20~70°C
7.0 Inch 1200x1920 WUXGA 40PIN MIPI IPS 1500nits TFT LCD Display Module 7.0 Inch 1200*1920 7.0 Inch 1200x1920 WUXGA 40PIN MIPI IPS 1500nits TFT LCD Display Module EX07061 TFT R69429 MIPI/4 1500nits aLL 111.26*166.37*5.3 94.5*151.2 -10~60°C -20~70°C
8.0 Inch 800x600 SVGA 50PIN TTL TN 1000nits TFT LCD Display Module 8.0 Inch 800*600 8.0 Inch 800x600 SVGA 50PIN TTL TN 1000nits TFT LCD Display Module EX08001 TFT TBD TTL 1000nits 6:00 183*141*7.0 162.05*121.54 -10~60°C -20~70°C

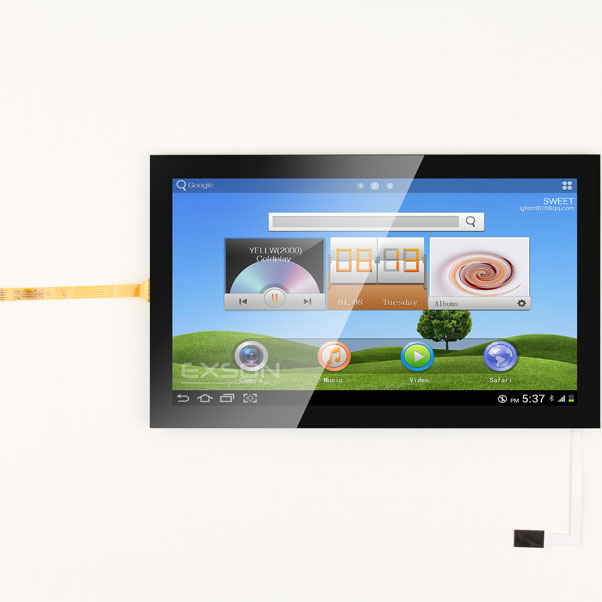

9.0 Inch 800x480 WVGA 50PIN TTL TN 1000nits TFT LCD Display Module 9.0 Inch 800*480 9.0 Inch 800x480 WVGA 50PIN TTL TN 1000nits TFT LCD Display Module EX09002 TFT TBD TTL 1000nits 6:00 211.1*128.4*6.6 198.00*111.696 -20~70°C -30~80°C

What makes a display sunlight readable?

  • With 1000 nits or higher brightness to compete with strong direct sunlight

  • Reuse the strong sun with a transflector by transmissive and reflective technology.


Why need to do Optical Bonding?

Usually there is a glass cover on the TFT to protect it from damage, but it would create air gap, resulting in reflection and affect the image quality. Optical bonding, glues the glass and TFT with optical-grade resin, eliminated the negative impact, improved durability. If a touch screen with optical bonding, it can gain the accuracy of the touch and screen.

Does the sunlight readable display can be adjusted automatically according to ambient brightness?

Yes, it can be achieved by adding a light sensor inside.

THANK YOU FOR YOUR ATTENTION ON EXSON!
Contact us to get more information about Exson’s TFT LCD Display Modules.
*
*
*
