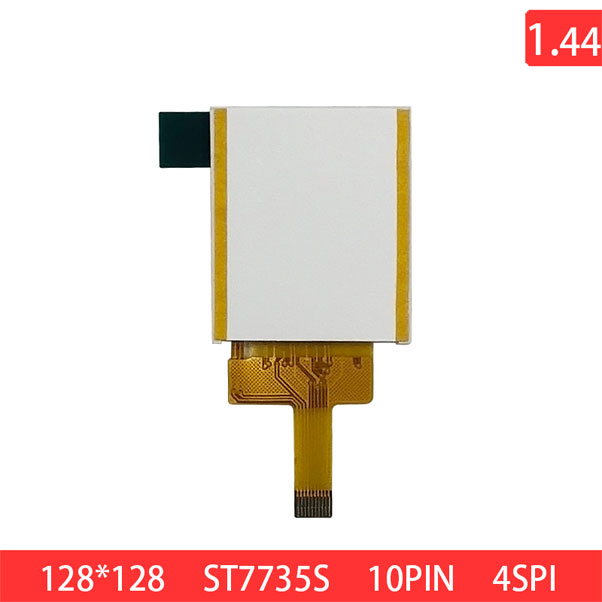

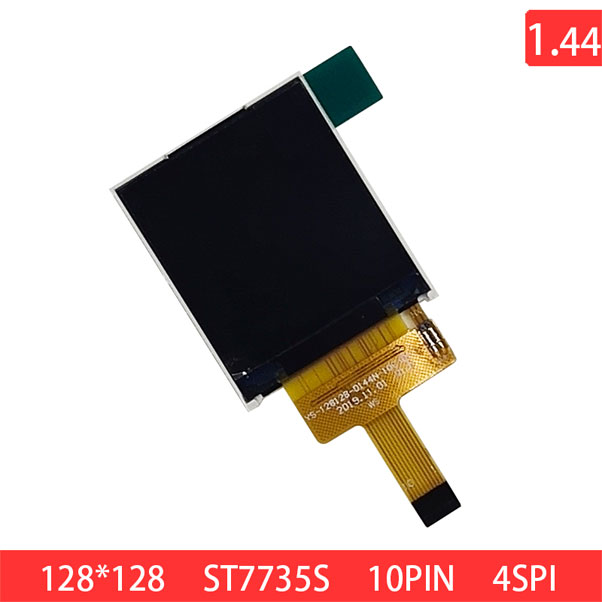

A simple 1.44″ Medium Brightness 250cd/m2 ,TN Module, Transmissive ,12 o’clock Viewing Direction ,Normal White with 128 x 128 dots.Operating Temp: -20℃ to 70℃,Storage Temp: -30℃ to 80℃，ROHS Compliant，Controller Datasheet: ST7735S.This liquid crystal display module is suitable for use in smart wear, smart watches, household appliances, toys, medical treatment, etc.
No. | Item | Specification |
1 | LCD size | 1.44inch |
2 | Resolution | 128(RGB)×128 |
3 | Pixel arrangement | RGB vertical stripe |
4 | Viewing Direction | 12 O’CLOCK |
5 | Active area | 25.5(W)×26.5(H)mm |
6 | Module size | 29(W)×34.41(H)×2.39(T)(Exclude FPC)mm |
7 | Back Light | White |
8 | Driver IC | ST7735S |
| 9 | Polarizer | Transmissive |
| 10 | Contrast ratio | 800:1 |
11 | Viewing angle | 70/70/70/60 |
