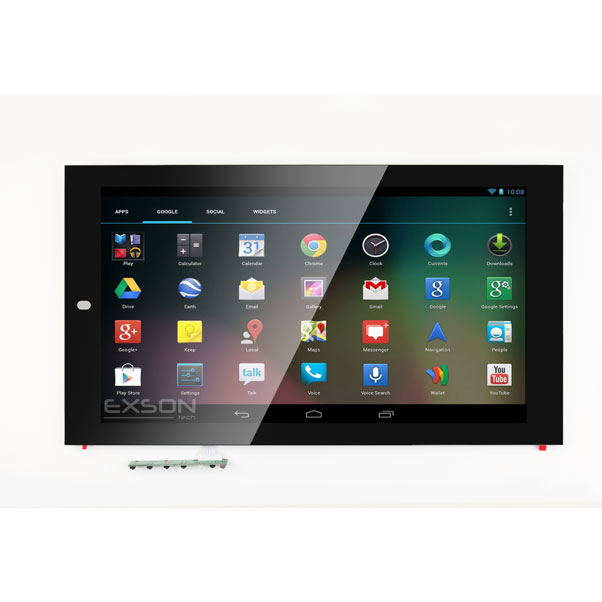

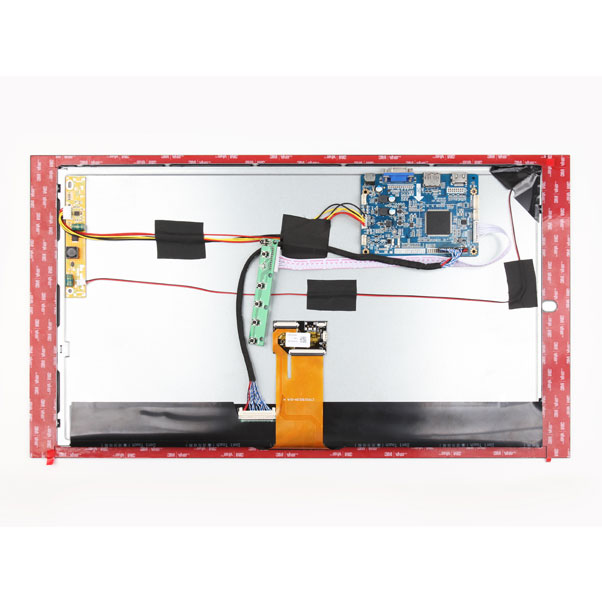

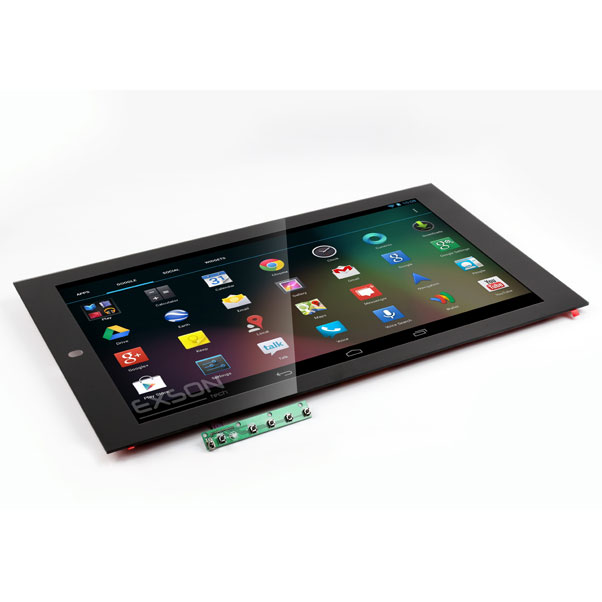

EX21501-A01 is a 21.5-inch 1920×1080 Resolution IPS TFT LCD module that supports the LVDS interface. It can be operating at temperatures from 0~50℃ and storage temperatures range from -20~65℃. And, it features 600(nits) high brightness and wider viewing angle technology. Industrial tft display is suitable for industrial and medical imaging, etc.
No. | Item | Specification |
1 | LCD size | 21.5 INCH |
2 | Resolution | 1920×1080 |
3 | Active area | 476.64(H)×268.11(V)mm |
4 | Module size | 487.54(H)×279.684（V）×1.335（D）mm |
5 | Interface | LVDS-Double |
6 | Brightness | 600cd/m2 |
7 | Contrast Ratio | 4000:1 |
8 | Pixel arrangement | RGB vertical stripe |
| 9 | Surface Treatment | Anti-Glare |
| 10 | Display Colors | 16.7M |
| 11 | Polarizer | Transmissive |
12 | Display mode | Normally Black |
11.6 Inch 1920x1080 FHD 30PIN eDP IPS 350nits TFT LCD Display Module
This single-display module is suitable for use in Player products.The LCD adopts one backlight with 54 High brightness white LEDs.Construction: 11.6〞TFT-LCD, White LED backlight.
12.1 Inch 1024x768 XGA 20PIN LVDS IPS 600nits TFT LCD Display Module
EX12101-A01 is a color active matrix thin film transistor(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving ...
