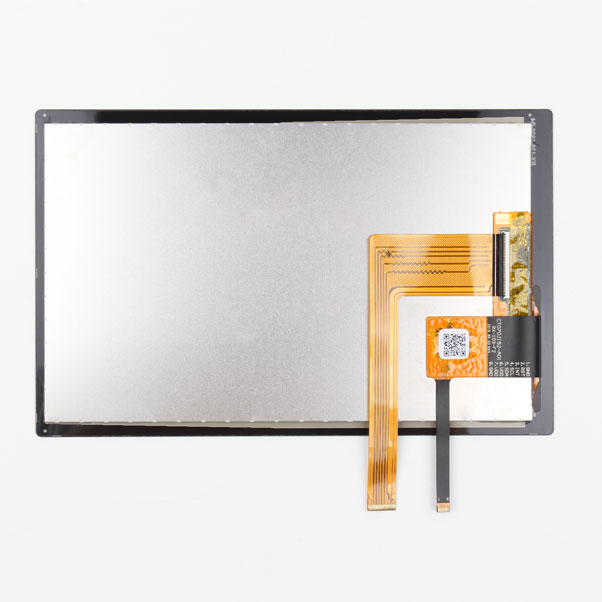

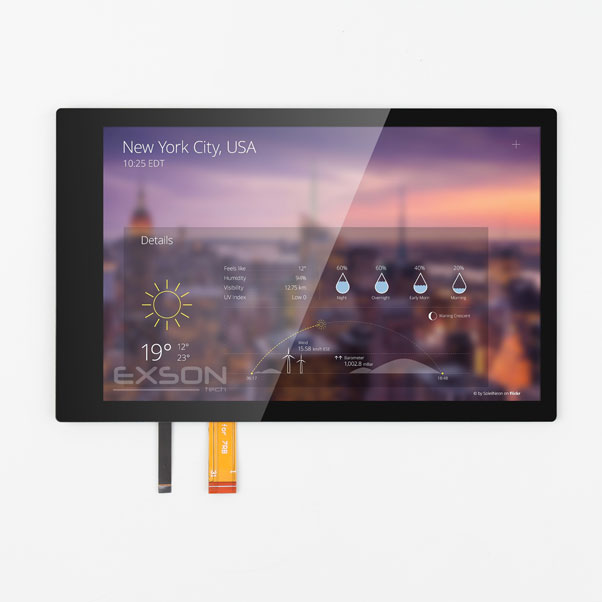

This module is color active matrix TFT LCD that uses Low-temperature poly-silicon TFT as a switching device. It is composed of a TFT LCD cell, IC, FPC, Backlight and CTP. And it has a 7.02(10:16) inch diagonally measured active display area with WUXGA(1200 horizontal by1920 vertical pixel) resolution.
No. | Item | Specification |
1 | LCD size | 7.02 inch |
2 | Resolution | 1200 x3(RGB)X1920 |
3 | Display mode | Normally Black |
4 | Pixel pitch | 0.07875 (W)X0.07875(H) mm |
5 | Active area | 94.5(W)X151.2(H) mm |

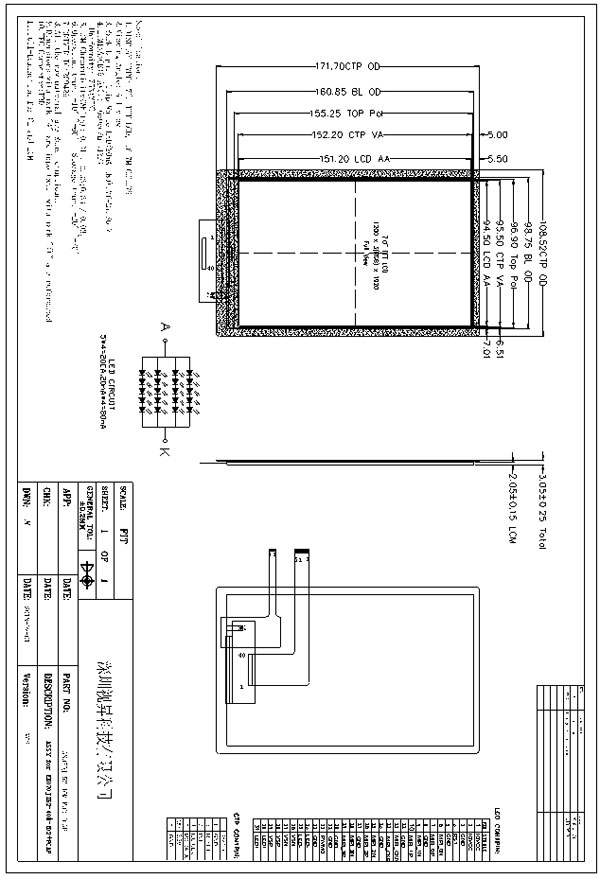

6 | Module size | 108.52 (W)X171.70(H)X3.05(D) mm |
7 | Interface | MIPI |
8 | Surface treatment | Hard coading |
9 | Color arrangement | RGB-stripe |
10 | View direction(Gray Inversion) | All |
11 | Backlight power consumption | 2.2288w |
12 | Panel power consumption | Typ. 0.14 w (max. 0.17w) |
