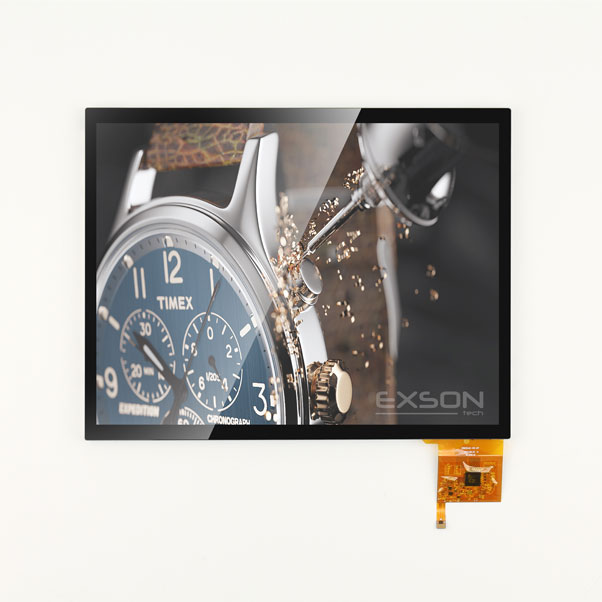

12.1 Inch 1024x768 XGA 20PIN LVDS IPS 600nits TFT LCD Display Module
12.1 Inch 1024x768 XGA 20PIN LVDS IPS 600nits TFT LCD Display Module
12.1 Inch 1024x768 XGA 20PIN LVDS IPS 600nits TFT LCD Display Module

12.1 TFT LCD Display 1024x768 XGA 20PIN LVDS IPS 600nits TFT LCD Display Module

EX12101-A01 is a color active matrix thin film transistor(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This 12.1 tft lcd model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 12.1 tft lcd diagonally measured active display area with XGA (1024 horizontal by 768 vertical pixel) resolution. Industrial tft display is suitable for industrial equipment, handheld devices, embedded system, medical equipment, etc.

Get A Quote

General Specifications of 12.1 tft lcd 1024x768 XGA 20PIN LVDS IPS 600nits

No.

Item

Specification

1

LCD size

12.1 inch

2

Resolution

1024x768

3

Active area

245.76(H)x184.32(V)mm

4

Module size

260.5 (H)x204(V)x8. 6(D)(mm)

5

Contrast Ratio

900:1

6

Display mode

Normally Black

7

Interface

LVDS

8

Brightness

600cd/m2

9

NTSC

70%(Typ.)

10

Pixel Arrangement

RGB Vertical Stripe

11

Surface treatment

Antiglare, Hard Coating (3H)

12

Weight

520g(max.)

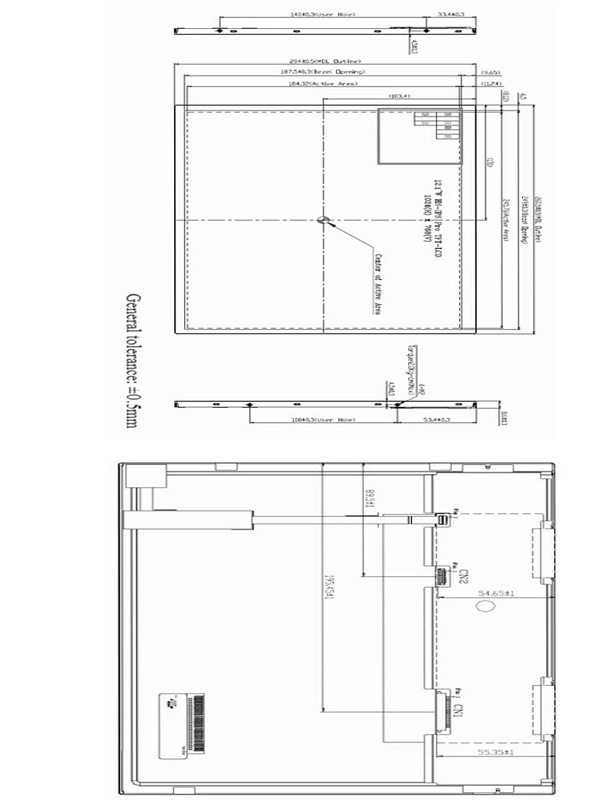

Outline Dimension of 12.1 tft lcd 1024x768 XGA 20PIN LVDS IPS 600nits

12.1 Inch 1024x768 XGA 20PIN LVDS IPS 600nits
