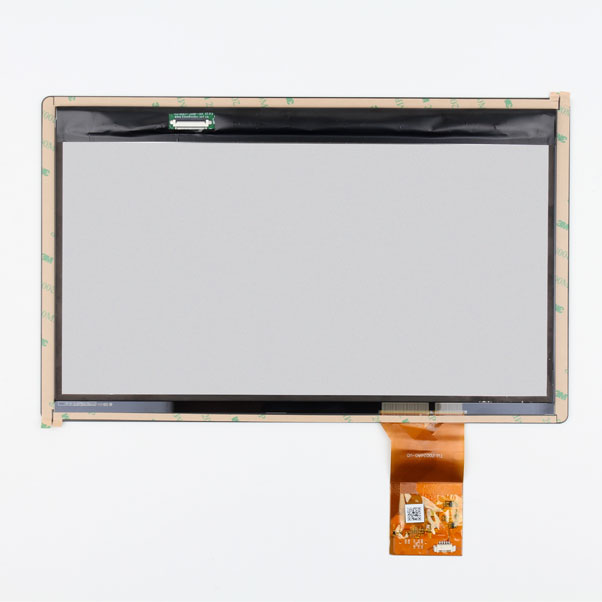

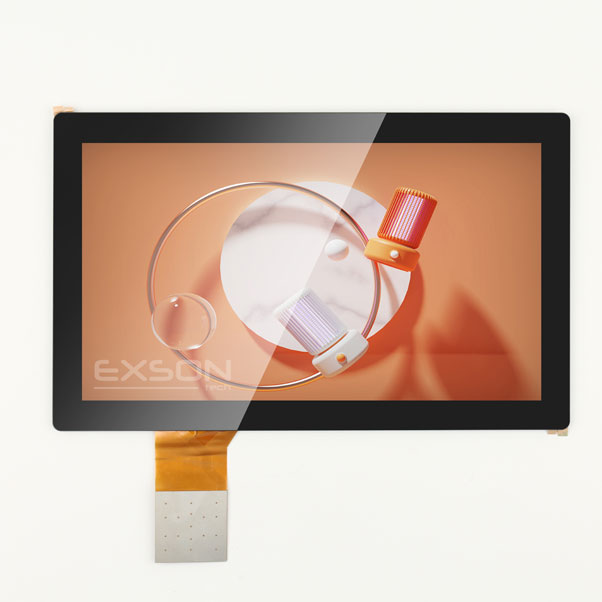

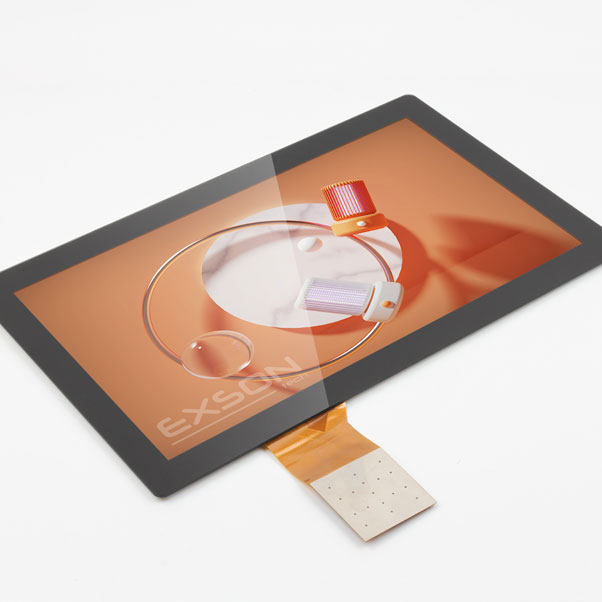

11.6 Inch 1920x1080 FHD 30PIN eDP IPS 350nits TFT LCD Display Module
11.6 Inch 1920x1080 FHD 30PIN eDP IPS 350nits TFT LCD Display Module
11.6 Inch 1920x1080 FHD 30PIN eDP IPS 350nits TFT LCD Display Module

11.6 Inch 1920x1080 FHD 30PIN eDP IPS 350nits TFT LCD Display Module

This single-display module is suitable for use in Player products.

The LCD adopts one backlight with 54 High brightness white LEDs.

Construction: 11.6〞TFT-LCD, White LED backlight.


Get A Quote

General Specifications of 11.6 Inch 1920x1080 FHD 30PIN eDP IPS 350nits

No.

Item

Specification

1

LCD size

10.1 inch

2

Resolution

1920 x3(RGB)X1080

3

Display mode

Normally Black, Transmissive

4

Pixel pitch

256.9 (H)X144.50 (V) mm

5

Active area

216.96 (W)X135.60 (H) mm

6

Module size

264.90(H)X156.10(V)X5.1 (T)mm

7

Pixel arrangement

RGB-vertical stripe

8

Interface

eDP1.2

9

Surface treatment

Glare

10

Color arrangement

RGB-stripe

11

View direction(Gray Inversion)

Free

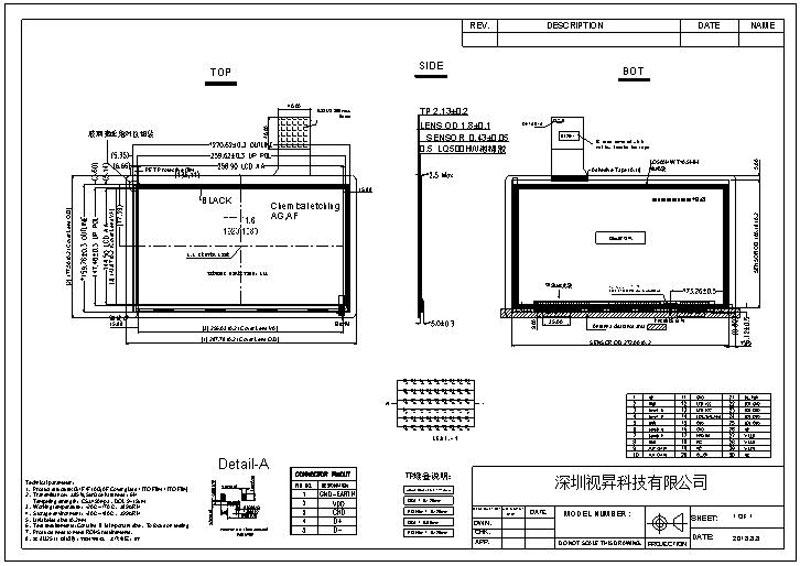

Outline Dimension of 11.6 Inch 1920x1080 FHD 30PIN eDP IPS 350nits

Outline Dimension of 11.6 Inch 1920x1080 FHD 30PIN eDP IPS 350nits

THANK YOU FOR YOUR ATTENTION ON EXSON!
Contact us to get more information about Exson’s TFT LCD Display Modules.
*
*
*
