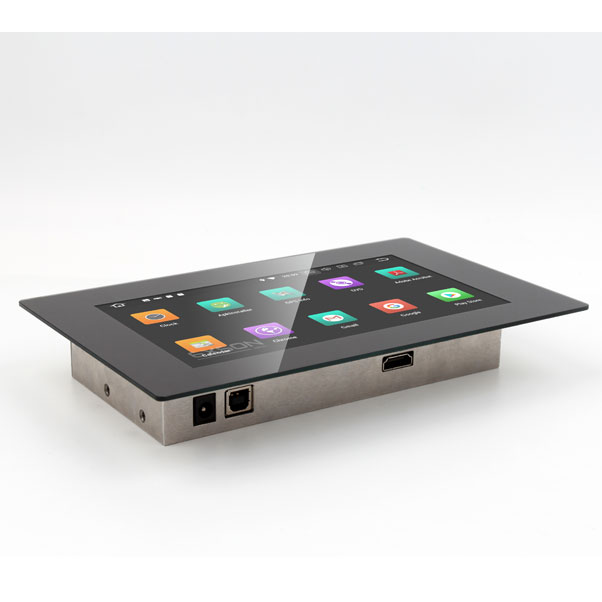

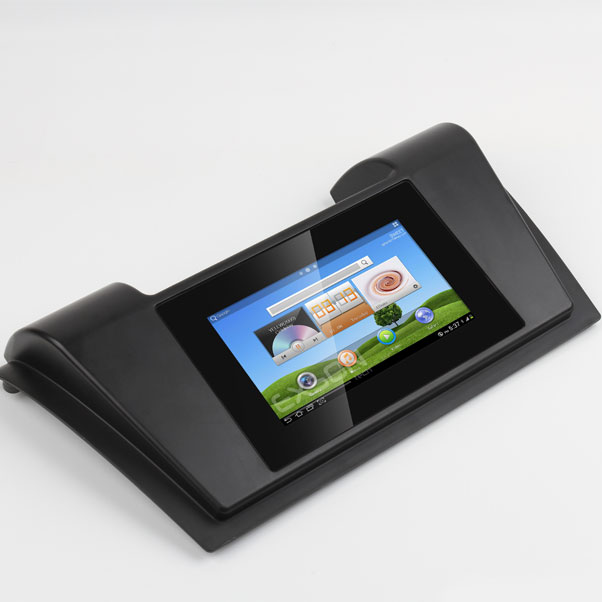

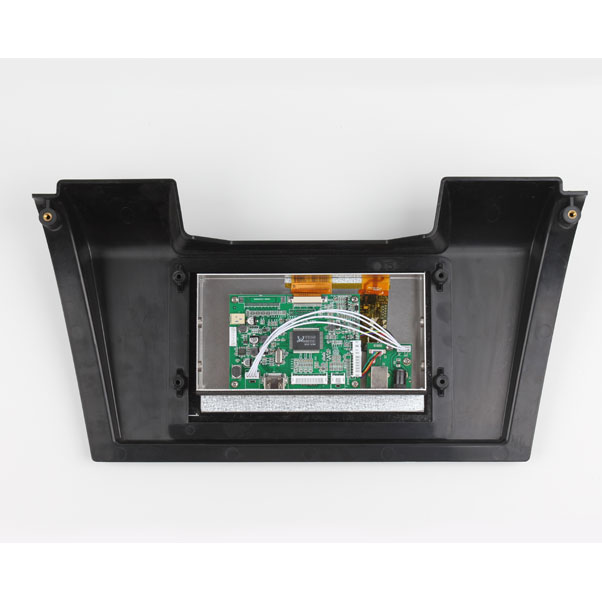

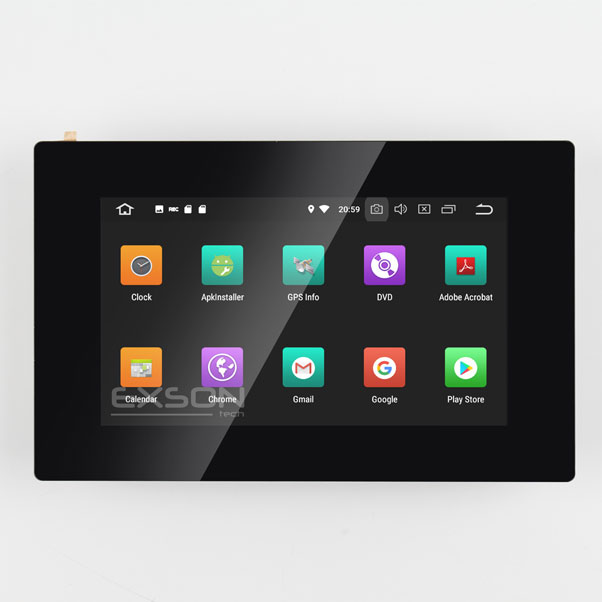

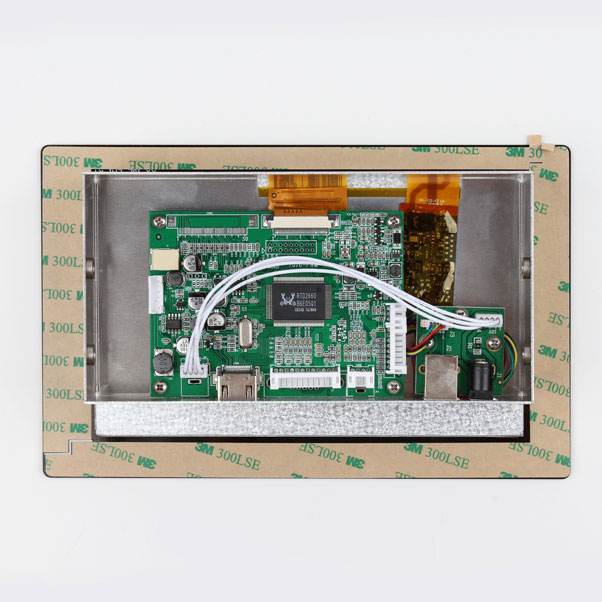

This single-display module is suitable for use in MB products .The LCD adopts one backlight with High brightness 27-lamps white LED. Construction: 7.0〞a-Si color TFT-LCD ,White LED backlight, FPC.
No. | Item | Specification |
1 | LCD size | 7.0 inch |
2 | Resolution | 1024 (RGB)X600 |
3 | Display mode | Normally black |
4 | Pixel pitch | 0.1506RGB(H)X 0.1432(V) mm |
5 | Active area | 154.2144H) × 85.92 (V) mm |

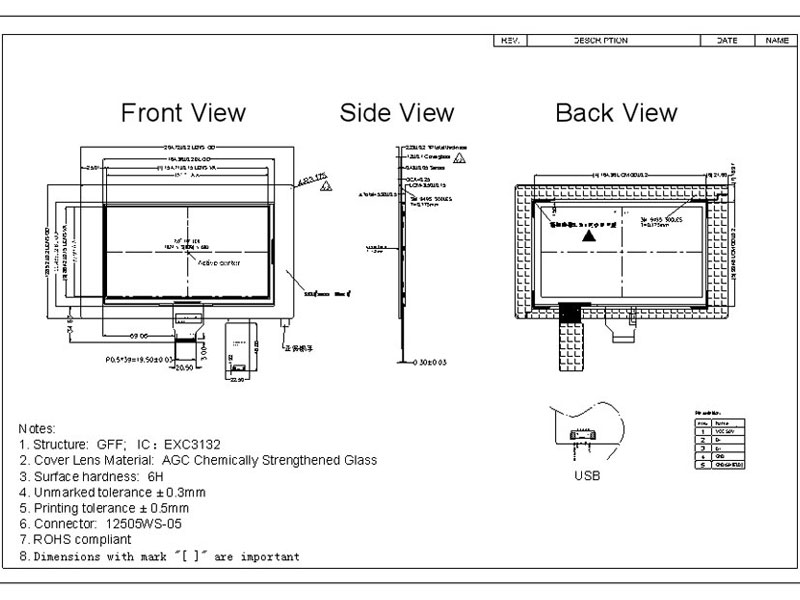

6 | Module size | 163.8(W)×97(H)×2.60 (D) mm |
7 | Pixel arrangement | RGB-stripe |
8 | Interface | LVDS |
1.77 Inch 128x160 QQVGA 12PIN TN 300nits TFT LCD Display Module
EX01701-A01 is a 1.77-inch, TN TFT LCD module with transmissive mode. Its resolution is 128x160 dots (128 vertical by 160 horizontal pixel) and every pixel is made up of three vertical strips of Red, ...
4.3 Inch 480x272 HVGA 6PIN UART TN 220nits TFT LCD Display Module
EX04302-A01 is a 4.3-inch color TFT display module with resolution of 480x272 pixels. The brightness is 220 cd/m2 and the contrast ratio is 400:1 (typical value). LCM voltage ranges from 3.3 V~5.0V. O...
2.0 Inch 240X320 QVGA 22PIN MCU IPS 450nits TFT LCD Display Module
A simple 2.0″,The brightness is 450cd/m2 with contrast ratio 800:1,IPS Module, Transmissive , All Viewing Direction , Normal Black with 240 x 320 dots.Operating temperature covers from -20℃~+70℃, s...
