EX02403-A01 2.47 Inch Circular LCD Panel/Screen/Display is a color active matrix TFT-LCD Panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 2.47 inch diagonally measured active area with resolutions 480 horizontal by 480 vertical pixel array. Each pixel is divided into Red, Green, Blue dots which are arranged in 2 domain stripe and this panel can display 16.7M colors.It is Suitable for vehicle mounted, handheld terminal, industrial LCD, etc.
No. | Item | Specification |
1 | LCD size | 2.47 inch |
2 | Resolution | 480x480 |
3 | Active area | 62.64×62.64(circle)mm |

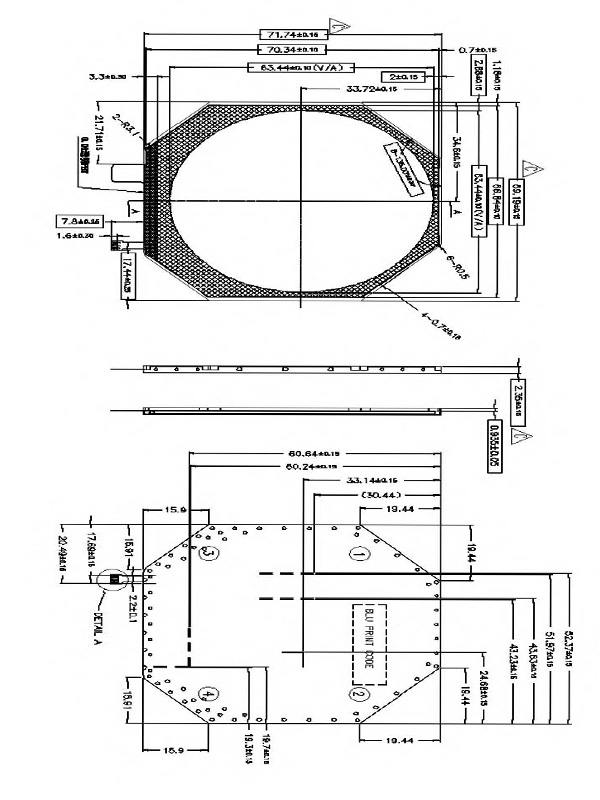

4 | Module size | 69.19(H)×71.74(V)×2.45(D) mm |
5 | Interface | MIPI |
6 | Brightness | 400cd/m2 |
7 | Contrast Ratio | 1000:1 |
8 | Driver IC | HX8379-C |
9 | Polarizer | Transmissive |
10 | Display Colors | 16.7M |
| 11 | Viewing Direction | All |
12 | Weight | 25g (Max) |
