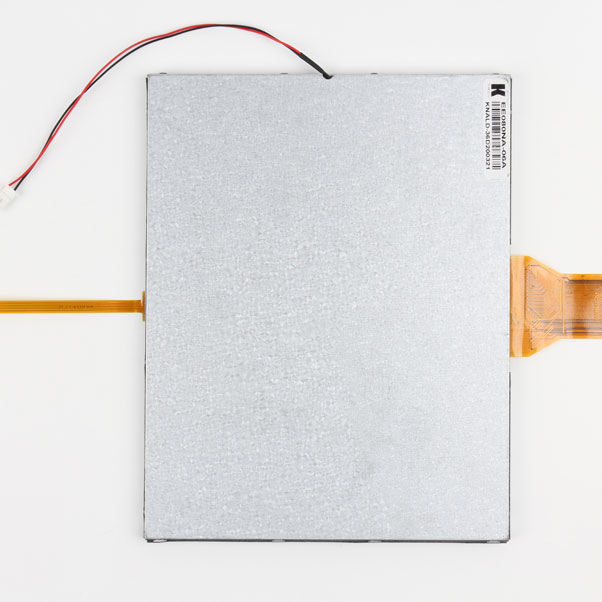

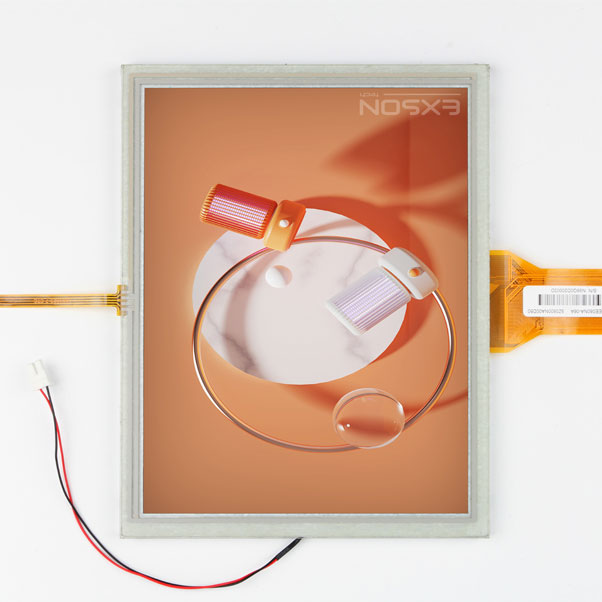

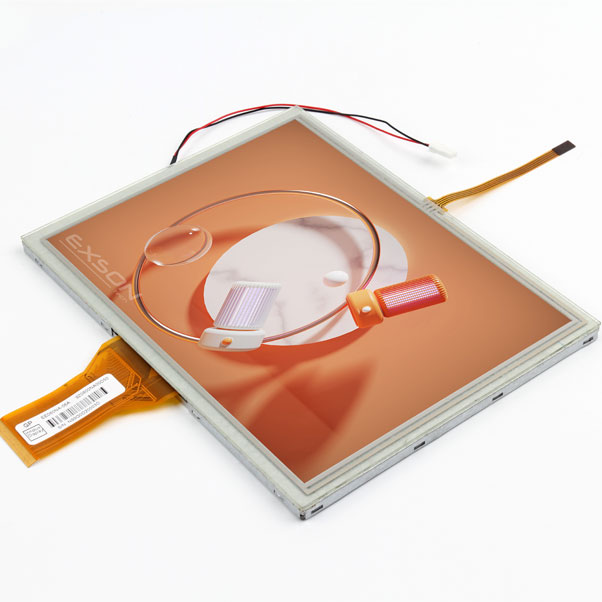

8.0 Inch 800x600 SVGA 50PIN TTL TN 1000nits TFT LCD Display Module
8.0 Inch 800x600 SVGA 50PIN TTL TN 1000nits TFT LCD Display Module
8.0 Inch 800x600 SVGA 50PIN TTL TN 1000nits TFT LCD Display Module

8.0 Inch 800x600 SVGA 50PIN TTL TN 1000nits TFT LCD Display Module

This single-display module is suitable for use in MB products. The LCD adopts one backlight with High brightness 27-lamps white LED. Construction: 7.0〞a-Si color TFT-LCD ,White LED backlight, FPC.

Get A Quote

General Specifications of 8.0 Inch 800x600 SVGA 50PIN TTL TN 1000nits

No.

Item

Specification

1

LCD size

8.0 inch

2

Resolution

800 (RGB)X600

3

Display mode

Normally black

4

Pixel pitch

0.0675RGB(W)X 0.2025(H) mm

5

Active area

162.0(W) × 121.5 (H) mm

6

View area

165.2(W) × 124.7 (H) mm

7

Module Dimension

183.0(W) × 141.0(H)× 5.5 (D) mm

8

Outline Dimension

183.0(W) × 141.0 (H)× 7.0 (D) mm

9

Pixel arrangement

RGB-stripe

10

Interface

TTL

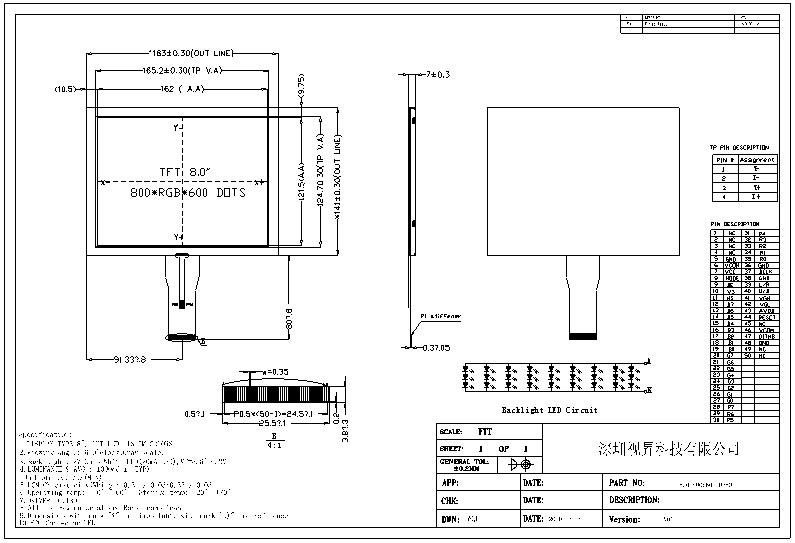

Outline Dimension of 8.0 Inch 800x600 SVGA 50PIN TTL TN 1000nits

Outline Dimension of 8.0 Inch 800x600 SVGA 50PIN TTL TN 1000nits

THANK YOU FOR YOUR ATTENTION ON EXSON!
Contact us to get more information about Exson’s TFT LCD Display Modules.
*
*
*
