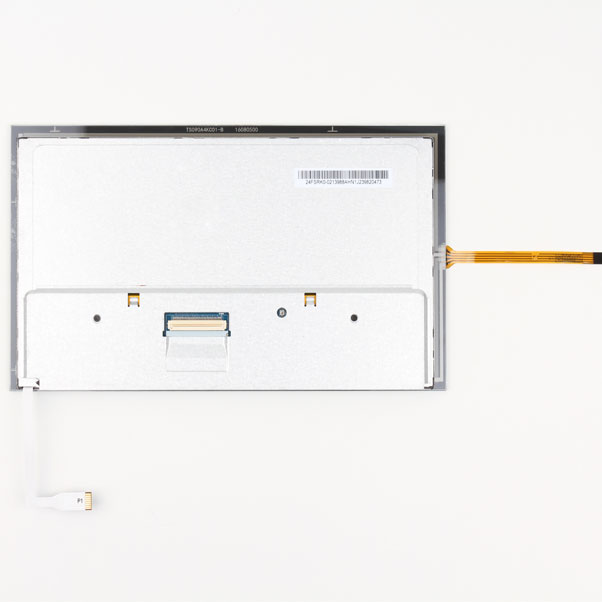

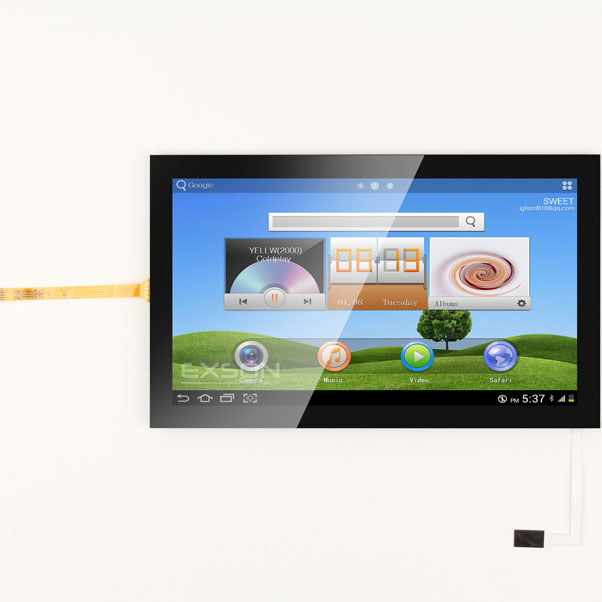

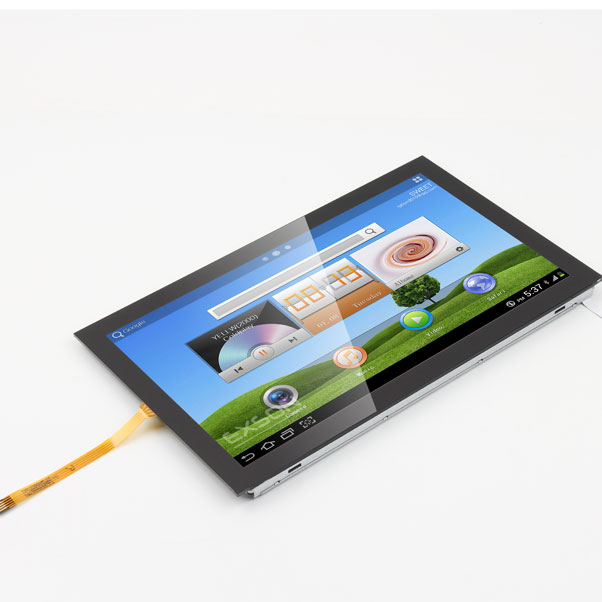

The EX09002-A01 is a color active matrix (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. It is composed of a TFT LCD panel, a timing controller, voltage reference, common voltage, column driver, and row driver circuit. This TFT LCD has a 9.0-inch diagonally measured active display area with resolution (800 horizontal by 480 vertical pixel array).It is suitable for industrial equipment, handheld devices, embedded system, medical equipment, etc.
No. | Item | Specification |
1 | LCD size | 9.0 inch |
2 | Resolution | 800(RGB) x480 |
3 | Active area | 198.000 (H) x111.696 (V)mm |

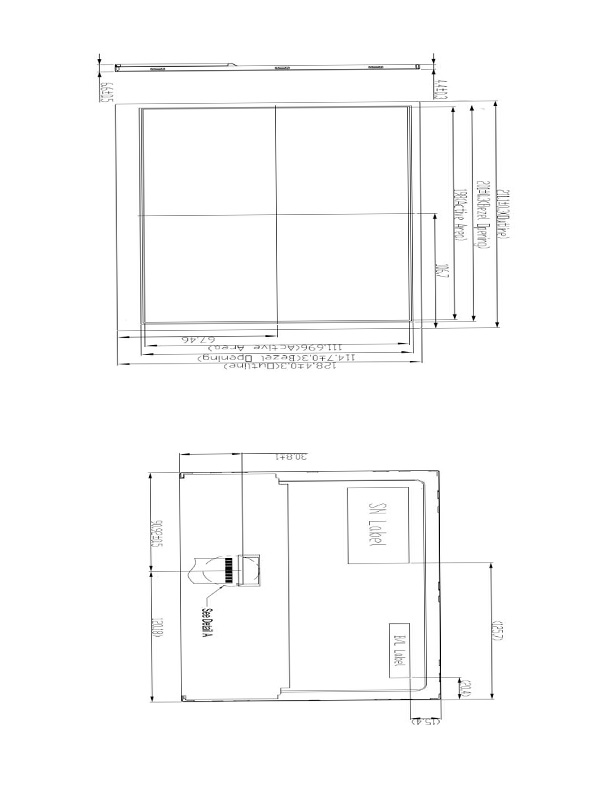

4 | Module size | 211.1(H) ×128.4(V) ×6.6(D)mm |
5 | Contrast Ratio | 20.83402778 |
6 | Display mode | Normally White |
7 | Interface | TTL |
8 | Brightness | 1000cd/m2 |
9 | Surface Treatment | Anti-Glare (3H) |
| 10 | Pixel Arrangement | R.G.B. Vertical Stripe |
| 11 | Support Color | 16.7M |
12 | Viewing Direction | 6 O’ clock |

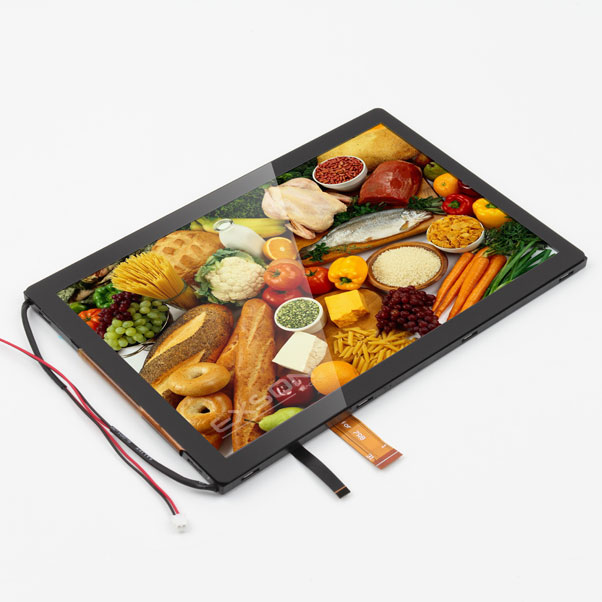

7.0 Inch 1200x1920 WUXGA 40PIN MIPI IPS 1500nits TFT LCD Display Module
