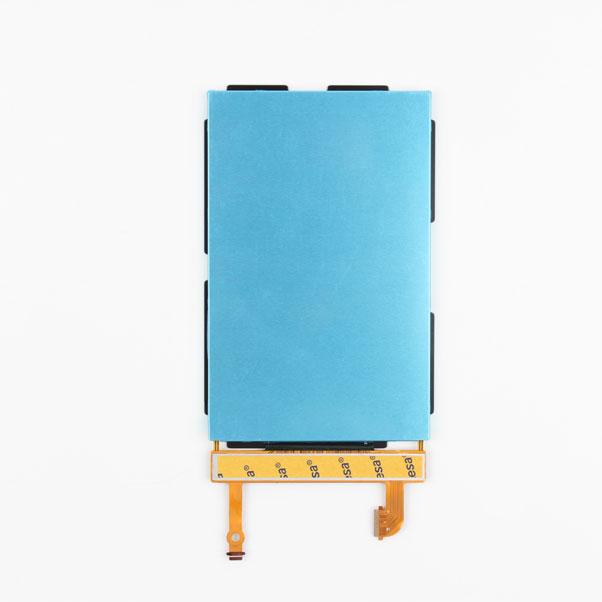

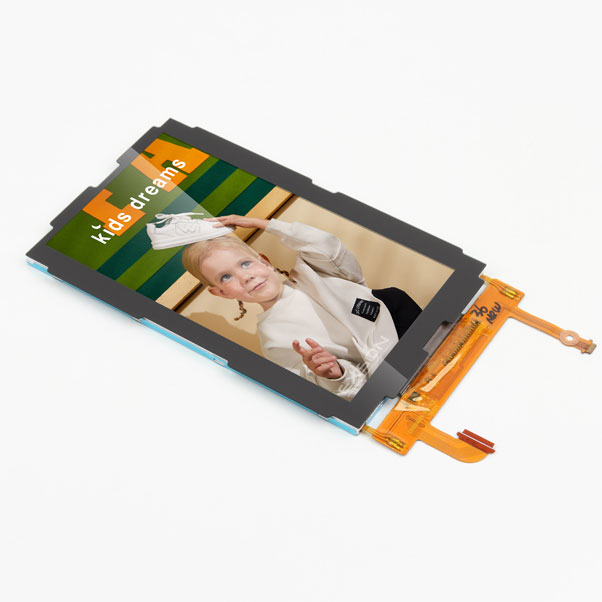

This single-display module is suitable for use in MB products. The LCD adopts one backlight with High brightness 40-lamp white LED. Construction: 5.0〞LTPS color TFT-LCD ,White LED backlight, FPC.
No. | Item | Specification |
1 | LCD size | 5.0-inch Incell |
2 | Resolution | 1080 (RGB)X1920 |
3 | Display mode | Normally black |
4 | Pixel pitch | 0.0191RGB(W)X 0.0191(H) mm |
5 | Active area | 61.88 (W)X110.02(H) mm |
6 | View area | 62.48 (W)X110.62(H) mm |
7 | LCM size | 75.88(W)X119.47(H)X3.2(D)mm |
8 | Module size | 79.08(W)X124.57(H)X4.3(D)mm |
9 | Pixel arrangement | RGB-stripe |
10 | Interface | MIPI |
11 | Backlight power consumption | 4.48w |
12 | Panel power consumption | 0.17w |

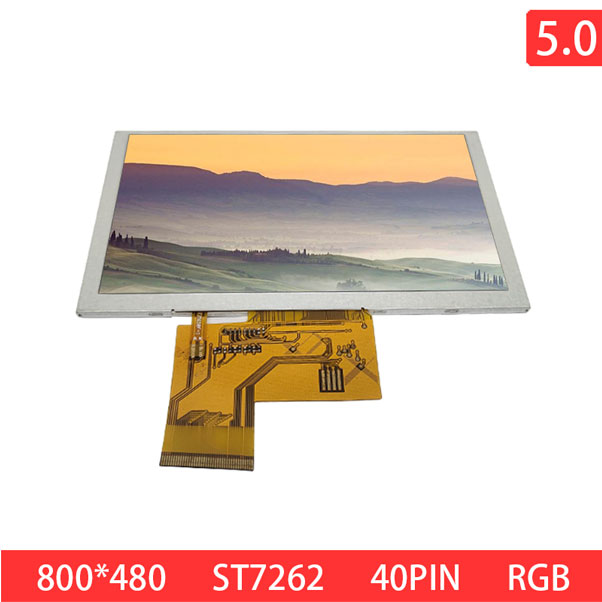

5.0 Inch 800x480 WVGA 40PIN TTL IPS 1000nits TFT LCD Display Module
A simple 5.0″ High Brightness, Sunlight Readable IPS Module, Transmissive, All Viewing Direction, Normal Black with 800 x (RGB) x 480 dots. This single-display module is suitable for use in handheld ...

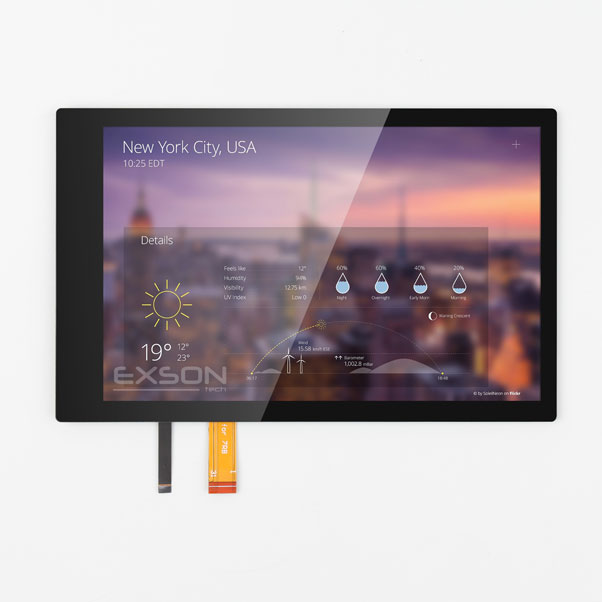

7.0 Inch 1200x1920 WUXGA 40PIN MIPI IPS 650nits TFT LCD Display Module
This module is color active matrix TFT LCD that uses Low-temperature poly-silicon TFT as a switching device. It is composed of a TFT LCD cell, IC, FPC, Backlight and CTP. And it has a 7.02(10:16) inch...

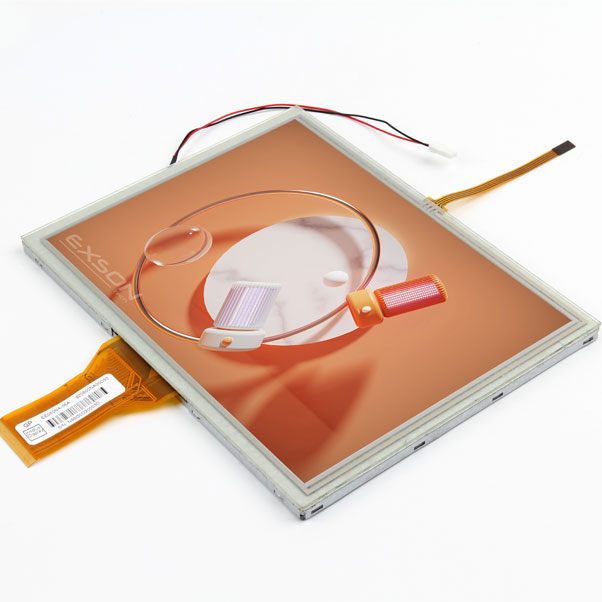

9.0 Inch 800x480 WVGA 50PIN TTL TN 1000nits TFT LCD Display Module
The EX09002-A01 is a color active matrix (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. It is composed of a TFT LCD panel, a timing controller, voltage refer...
