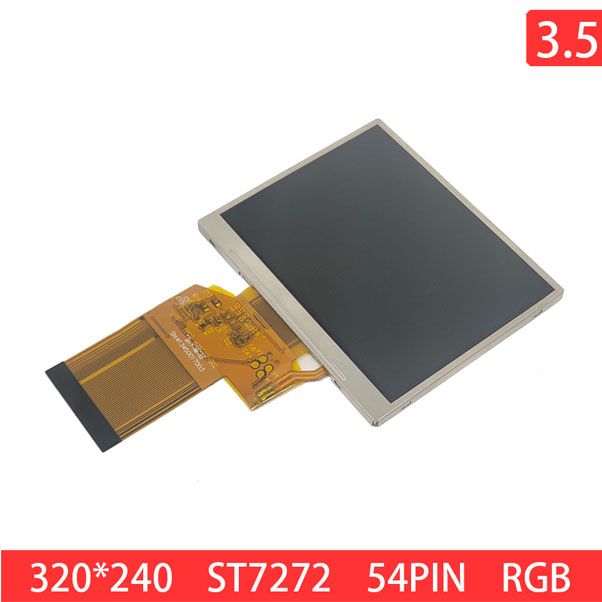

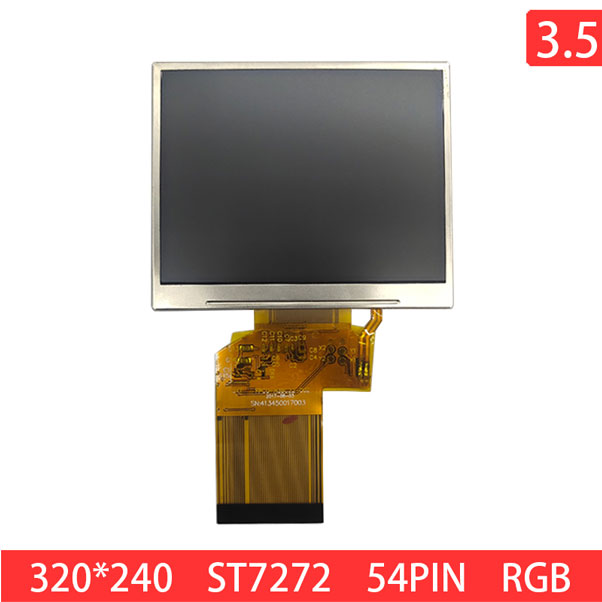

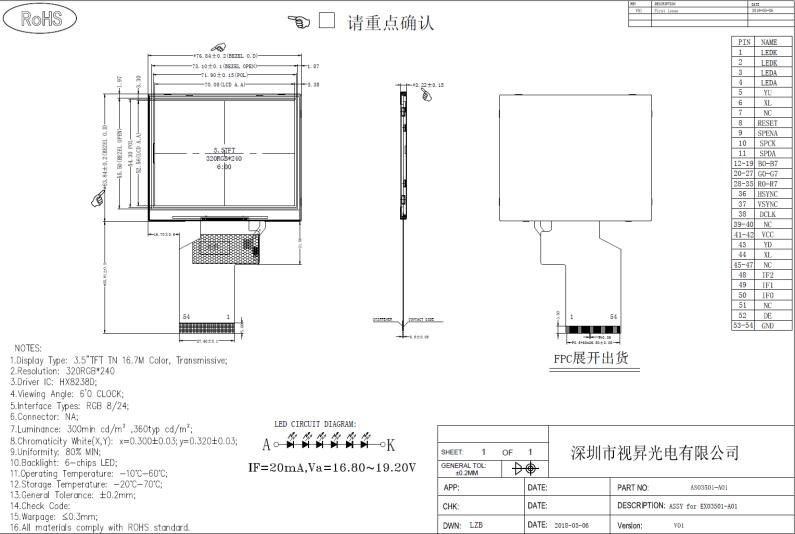

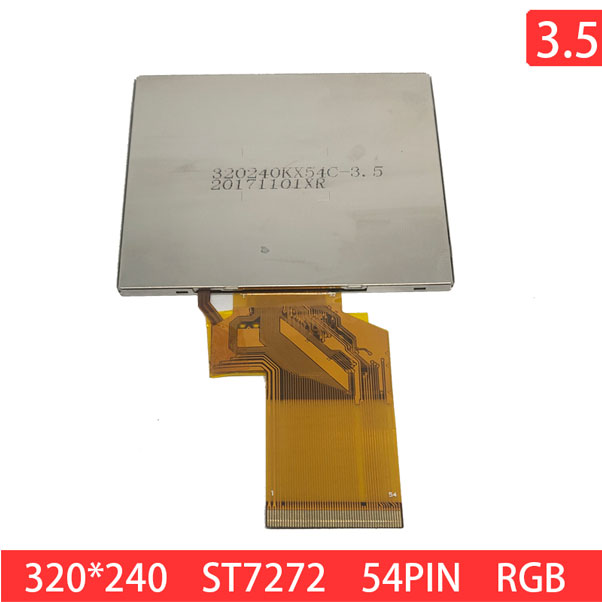

EX03501-A01 is a 3.5-inch color active matrix TFT liquid crystal display. The dimension size of this 3.5 inch tft lcd display is 76.14x63.84 mm, size of active area is 70.08x52.56 mm (3.5”diagonal), and its resolution is 320x240 pixels. The module supports RGB interface with contrast ratio 300 : 1 and brightness 300 cd/m2. EX03501-A01 RGB TFT LCD display module power supply voltage is 3.0-3.6V, typical value is 3.3V. Operating temperature ranges from -10℃ up to +60℃; storage temperature covers from-20℃ to +70℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment,etc.
No. | Item | Specification |
1 | LCD size | 3.5 inch |
2 | Resolution | 320 (RGB)X240 |
3 | Active area | 70.08(H)×52.56(V)mm |
4 | Module size | 76.14(W)*63.84(H)*3.22(T) |
5 | Polarizer | Transmissive |
6 | Driver IC | HX8238D |
7 | Interface | RGB 8/24 |
8 | Brightness | 300cd/m² |
| 9 | Backlight Color | White |
| 10 | Contrast Ratio | 300:1 |
| 11 | Viewing Direction | 6 o'clock |
