7.0 Inch 800x480 WVGA 40PIN TTL CTP TN 450nits Resistive Touch Screen

7.0 Inch 800x480 WVGA 40PIN TTL CTP TN 450nits Resistive Touch Screen

This single-display module is suitable for use in Automobile products. The LCD adopts one backlight with 27 High brightness white LEDs. Construction: 7.0〞а-Si color TFT-LCD ,White LED backlight.

Get A Quote

General Specifications of 7.0 Inch 800x480 WVGA 40PIN TTL CTP TN 450nits

No.

Item

Specification

1

LCD size

7.0 inch

2

Resolution

800(RGB) x480

3

Active area

154.08 (W)X85.92 (H) mm

4

Module size

64.90 (W)X100.00(H)X5.4(D) mm

5

Interface

RGB

6

Brightness

450cd/m²

7

Contrast Ratio

500:1

8

Driver IC

EK9713A

9

Polarizer

Transmissive

10

Pixel arrangement

RGB-vertical stripe

11

Viewing Direction

6 O’clock

12

Display mode

Normally White

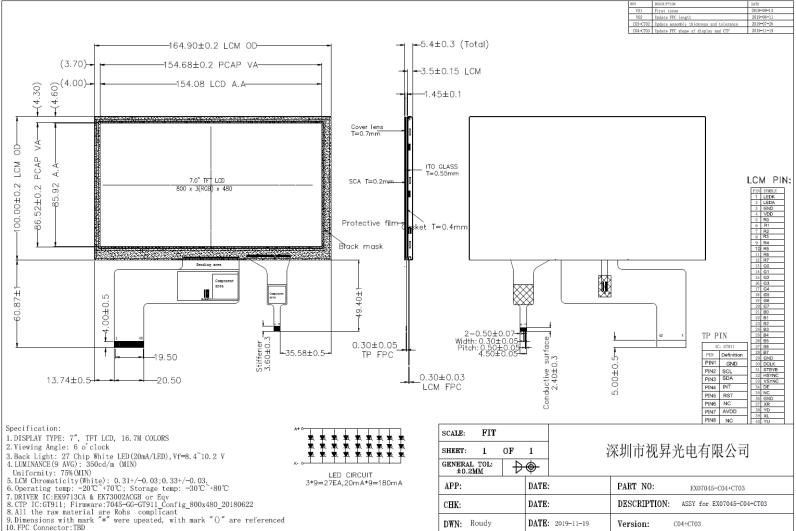

Outline Dimension of 7.0 Inch 800x480 WVGA 40PIN TTL CTP TN 450nits


7.0 Inch 800x480 WVGA 40PIN TTL CTP TN 450nits
