1.3 Inch 240x240 Square 13PIN 4 Wire SPI IPS 160nits TFT LCD Display Module

1.3 Inch 240x240 Square 13PIN 4 Wire SPI IPS 160nits TFT LCD Display Module

This single-display module is suitable for use in MB products .The LCD adopts one backlight with High brightness 2-lamps white LED. Construction: 1.3〞a-Si color TFT-LCD ,White LED backlight, FPC.


Get A Quote

General Specifications of 1.3 Inch 240x240 Square 13PIN 4 wire SPI IPS 160nits

No.

Item

Specification

1

LCD size

1.3inch

2

Resolution

240 (RGB)X240

3

Active area

23.4(H)×23.4(V)mm

4

Module size

33.00(H)*33.00(V)*2.30(T)mm

5

Interface

4-line Serial interface

6

Brightness

160cd/m2

7

Contrast Ratio

800:1

8

Pixel arrangement

RGB-stripe

9

Viewing Direction

All

10

Back Light

2 Chip-White LED

11

Polarizer

Transmissive

12

Display mode

Normally Black

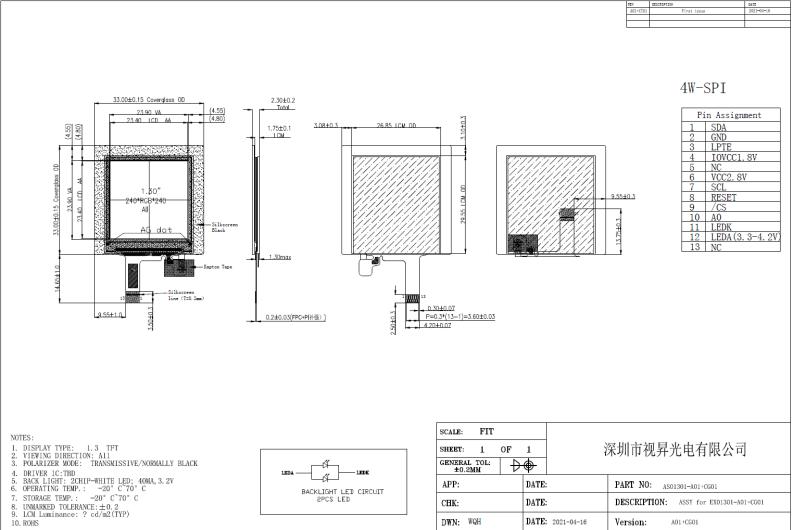

Outline Dimension of 1.3 Inch 240x240 Square 13PIN 4 wire SPI IPS 160nits

1.3 Inch 240x240 Square 13PIN 4 wire SPI IPS 160nits
